AquaMaster 3
Electromagnetic flowmeter 5 Specification
User Guide OI/FET2XX–EN Rev. E 47
Sensor Specification (Nominal Dimensions)
15 to 25 mm (
1
/2 to 1 in.) – Screw Ends (MM/GA)
Meter Size
Dimensions
mm (in.)
Approx. Weight
mm in. A Connection kg lb
15
1
/2 119 (4.7) G
3
/4 in. B or
3
/4 in. NPSM 2.5 5
20
3
/4 127 (5) G 1 in. B or 1 in. NPSM 2.5 5
25 1 127 (5) G 1
1
/4 in. B or 1
1
/4 in. NPSM 2.5 5

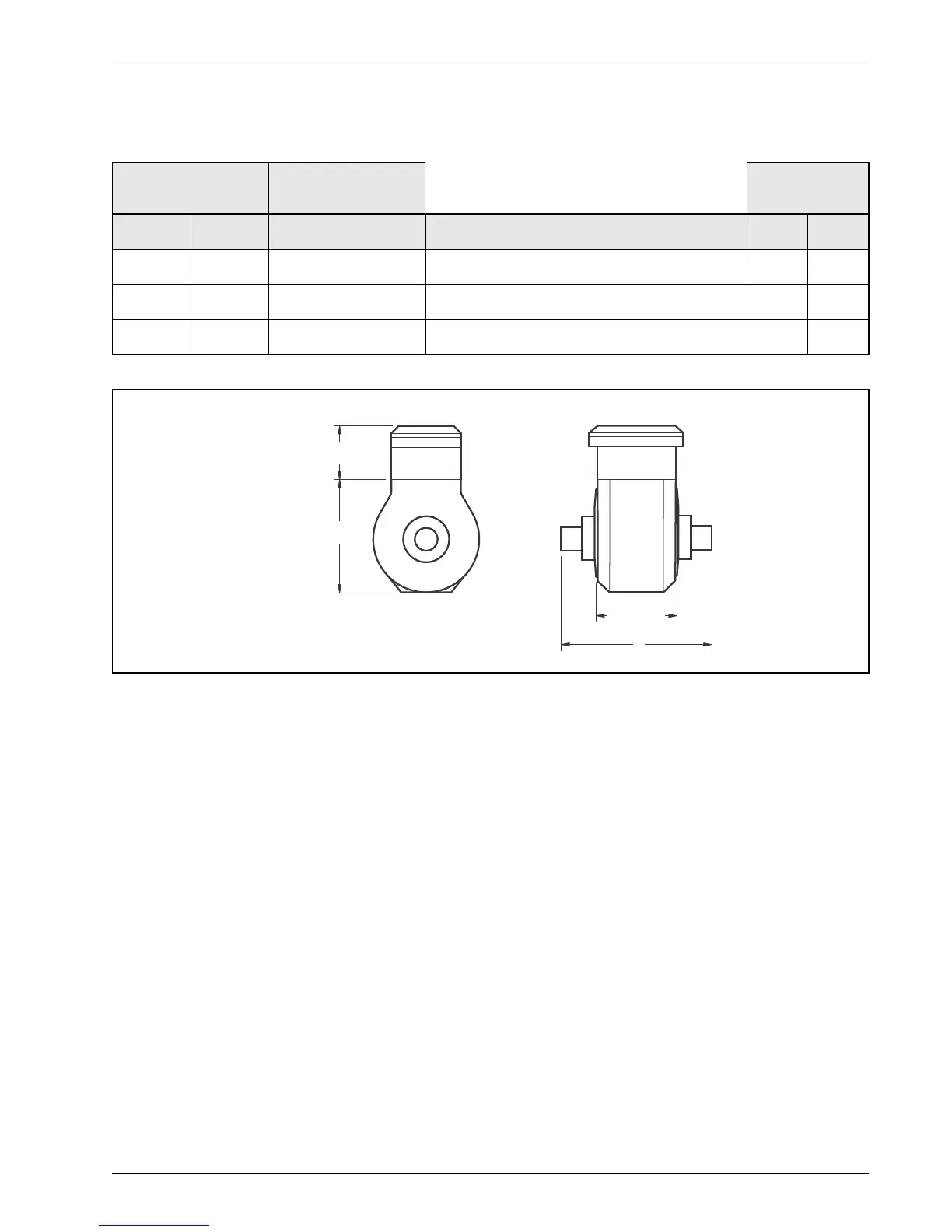

Dimensions in. mm (in.)
A
61 (2.4)
128 (5)
89 (3.5)
