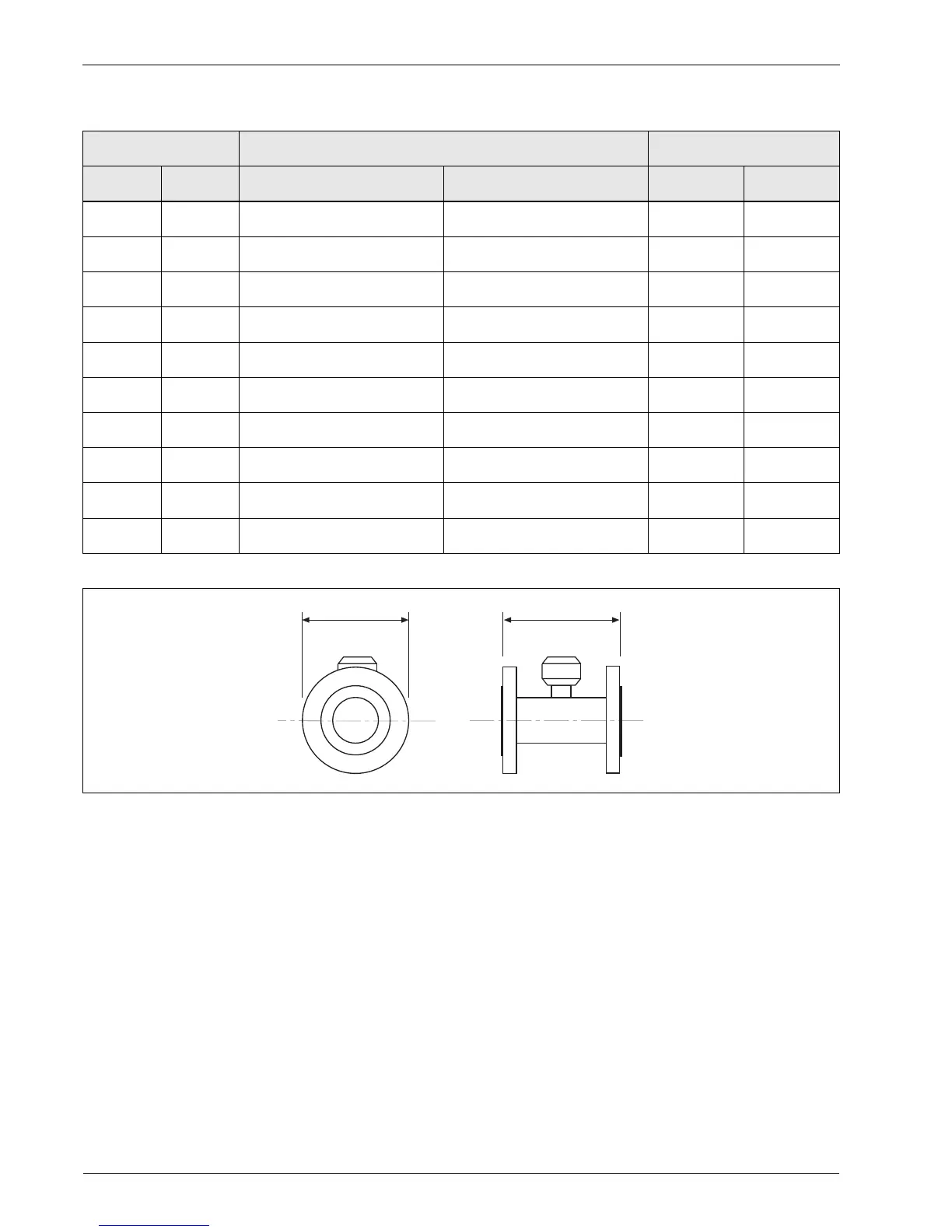

AquaMaster 3
Electromagnetic flowmeter 5 Specification
48 User Guide OI/FET2XX–EN Rev. E
40 to 300 mm (1
1
/2 to 12 in.) – Flanged (MM/GA)
Meter Size Dimensions mm (in.) Approx. Weight
mm in. A B kg lb
40 1
1
/2 150 (5.9) 200 (7.9) 11 24
50 2 165 (6.5) 200 (7.9) 12 27
65 2
1
/2 219 (8.6) 200 (7.9) 13 29
80 3 200 (7.9) 200 (7.9) 18 40
100 4 220 (8.6) 250 (9.8) 25 55
125 4 220 (8.6) 250 (9.8) 25 55
150 6 285 (11.2) 300 (11.8) 31 68
200 8 340 (13.3) 350 (13.8) 48 106
250 10 405 (15.9) 450 (17.7) 75 165
300 12 460 (18.1) 500 (19.7) 112 247
BA
