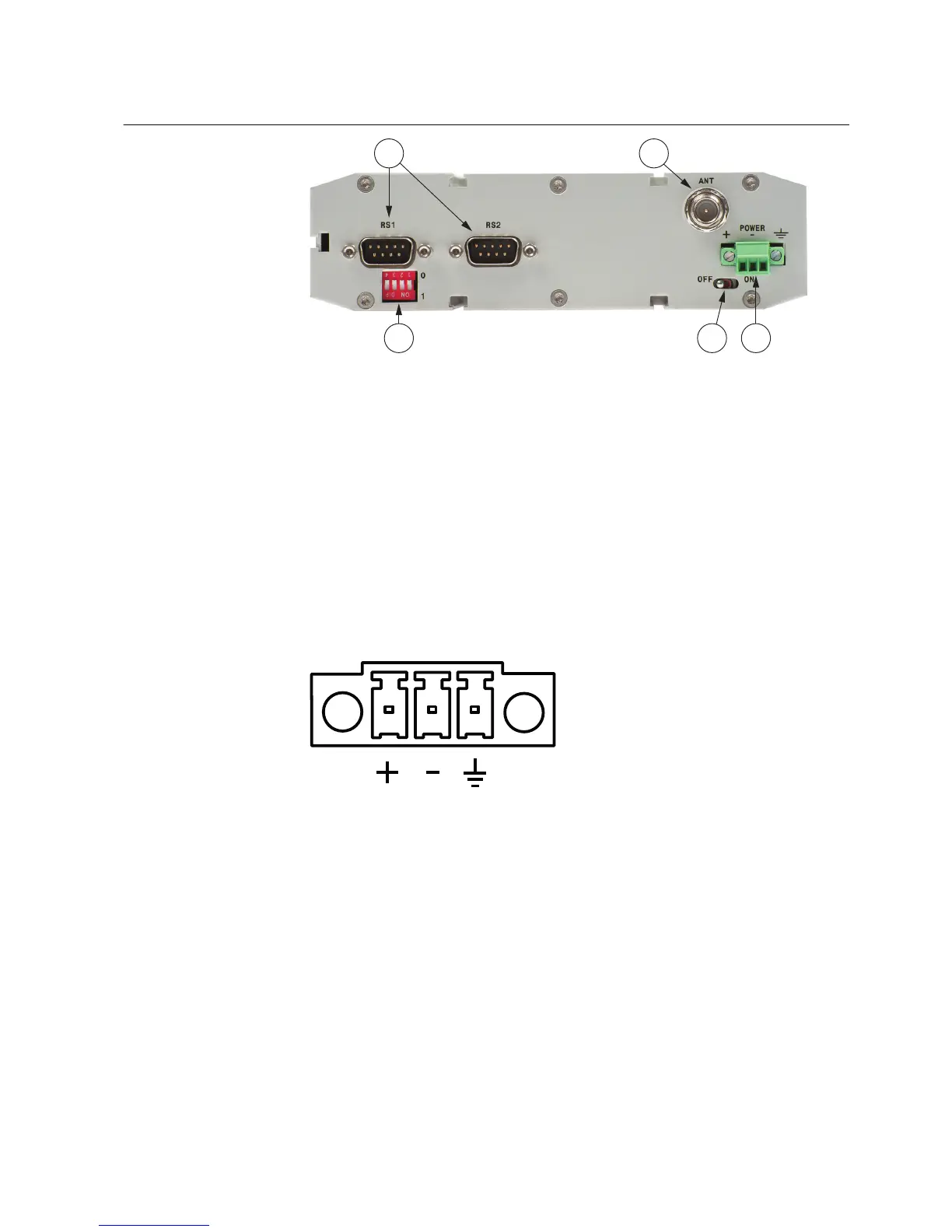

Figure 3: Back panel
1 Application serial ports
2 Antenna connector FME (male)
3 DIP switches
4 Power switch
5 Power supply 12...36 VDC
Power supply connector
The device has a VDC power supply connector.
GUID-E514AE4B-D431-49E6-ACA4-930E36C42977 V1 EN
Figure 4: Power supply connector
Pin 1
Positive (+)
Pin 2 Negative (-)
Pin 3 GND
The unit is protected against reversed polarity in specified voltage range.
Power switch
The power switch enables or disables the operation of the device.
1MRS758460 B Section 2
ARG600 overview
ARG600 Dual SIM Variant 11
User Manual
