10.1 Monitor Status
There are five tabs in the Monitor Status screen:
10.1.1 Status
Note. The 'Diagnostics' menu can be accessed only from the 'Indicator View’ screen.

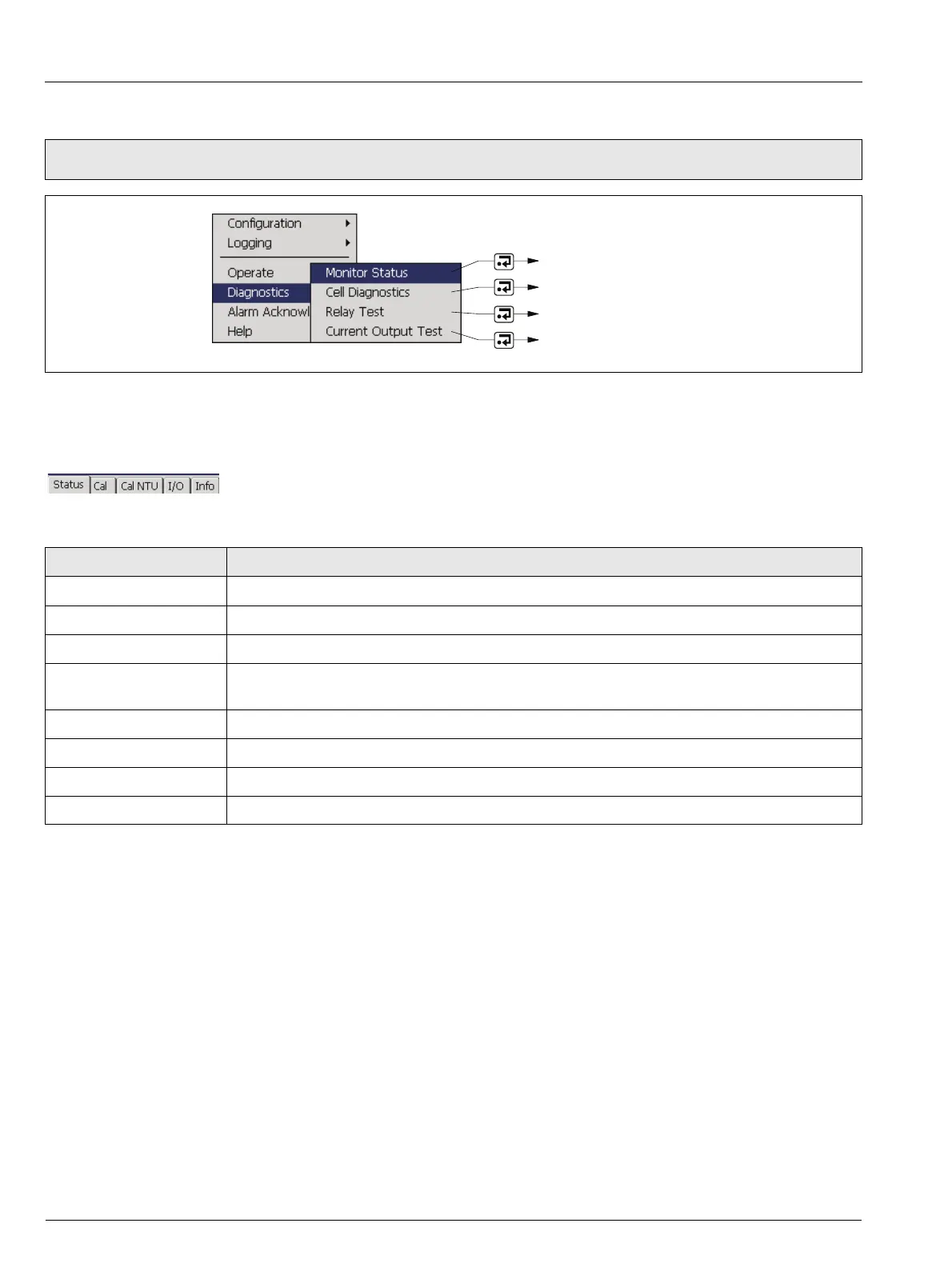

Fig. 10.1 User Diagnostic Screens
see Section 10.1, page 52
see Section 10.2, page 54
see Section 10.3, page 54
see Section 10.4, page 54
Fields Description
Current State Displays the current state of the analyzer (for example, Measuring, calibrating, off).
Current Step An indication of what the analyzer is doing in 'real time'.
Measurement Complete A 'real-time' indication of measurement cycle progress
Sample Concentration
The current estimated concentration, derived from the raw detector signal. This is displayed only after
the addition of all reagents.
Detector mV The raw signal from the analyzer detector (0 to 4095 mV).
LED Current Displays the current of the LED.
Dilution Ratio(s) The current dilution ratio applied to each of the measurement streams.
Cell Temperature The current recorded cell temperature.
