ABB ControlMaster CM50 User Manual

ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 3 Displays, Icons and Keys
IM/CM/S–EN Rev. R 5
3 Displays, Icons and Keys
3.1 CM10 Operator Page, Icons and Keys

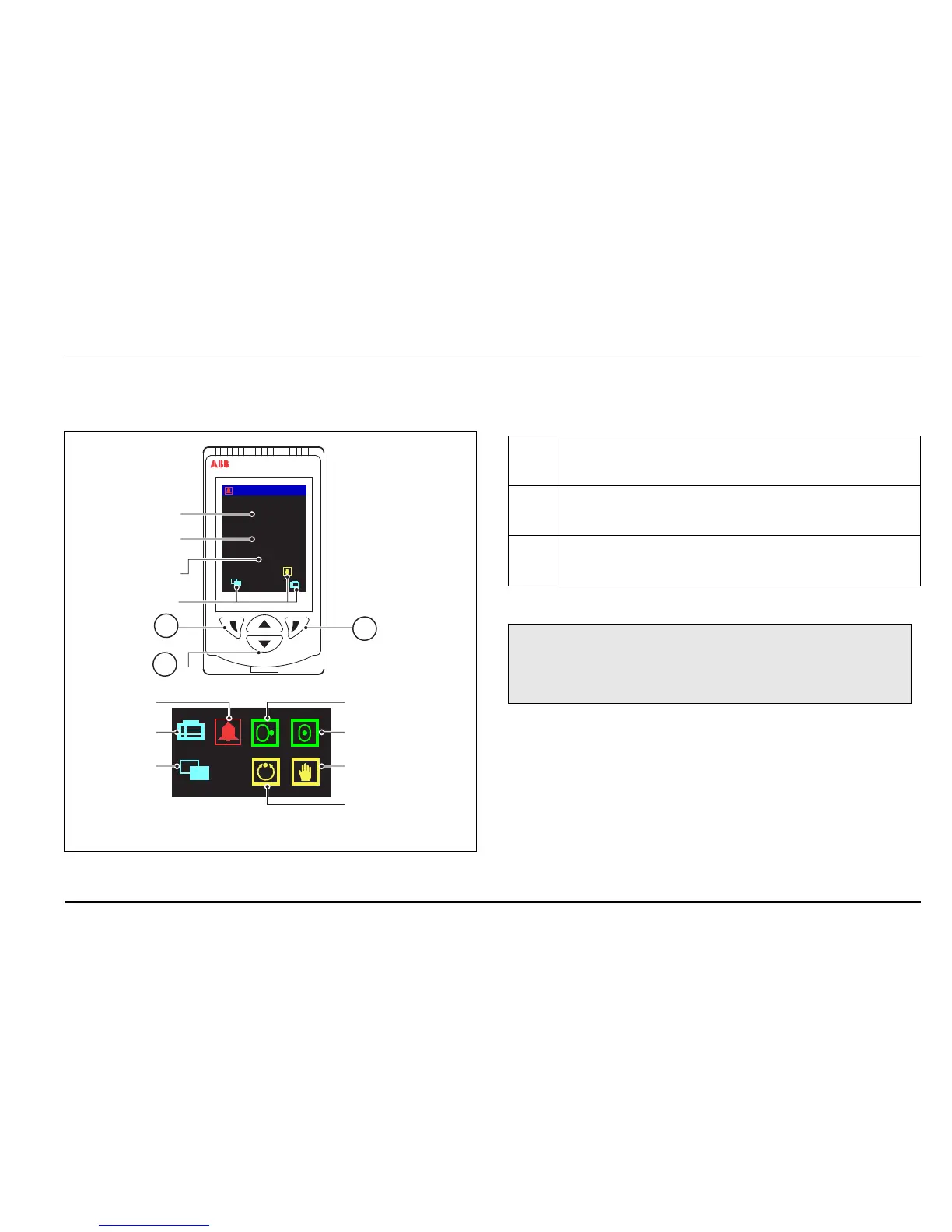

Fig. 3.1 ControlMaster CM10 Display and Icons
CM10
47.46
35.00
47.6%
gal/h
PV
SP
OP
ControlMaster
B
C
A
PV Value
Setpoint Value
Icons
Access
Level
Manual Control
Mode
Local Setpoint
Remote Setpoint
Output Value
Auto Control
Mode
Operator
Level
Icons
See Table 3.1
for key functions
Alarm
Status
A
Navigation (left) / Operator Level access key – see
page 22.
B
Up / Down keys – navigate up / down menus and
increase / decrease displayed values.
C
Navigation key (right) / programmable Soft Key –
see page 40.
Table 3.1 CM10 Front Panel Key Functions
Note. When a Soft Key option is assigned to key C,
the Advanced Level (see page 36) must be accessed
using the Operator Level access key A.
