DCS500 Pin and Parameter list
A 59
GEAR.START_TORQ
Parameter of TORQUE/CURRENT_LIMITATION-function block. ( S6/16 )
Gear backlash compensation function.
When the torque is changing direction, the torque limit is reduced for a while.
GEAR.START_TORQ is the torque limit right after the direction change.
2315 FB_P: I2 SC: TORQ HL: 16000 LL: 0 D: 16000 U: %
GEAR.TORQ_TIME
Parameter of TORQUE/CURRENT_LIMITATION-function block. ( S6/16 )
GEAR.TORQ_TIME is the time period after the direction change when
GEAR.START_TORQ torque is used. ( see 2315 )
2316 FB_P: I2 SC: 1 HL: 1000 LL: 0 D: 100 U: ms
GEAR.TORQ_RAMP
Parameter of TORQUE/CURRENT_LIMITATION-function block. ( S6/16 )
GEAR.TORQ_RAMP defines the rate of change for the torque limit when
GEAR.TORQ_TIME has elapsed. GEAR.TORQ_RAMP is given as the maximum change
of torque limit in 3.3 ms (50 Hz). ( see 2315 )
2317 FB_P: I2 SC: TORQ HL: 16000 LL: 0 D: 200 U: %

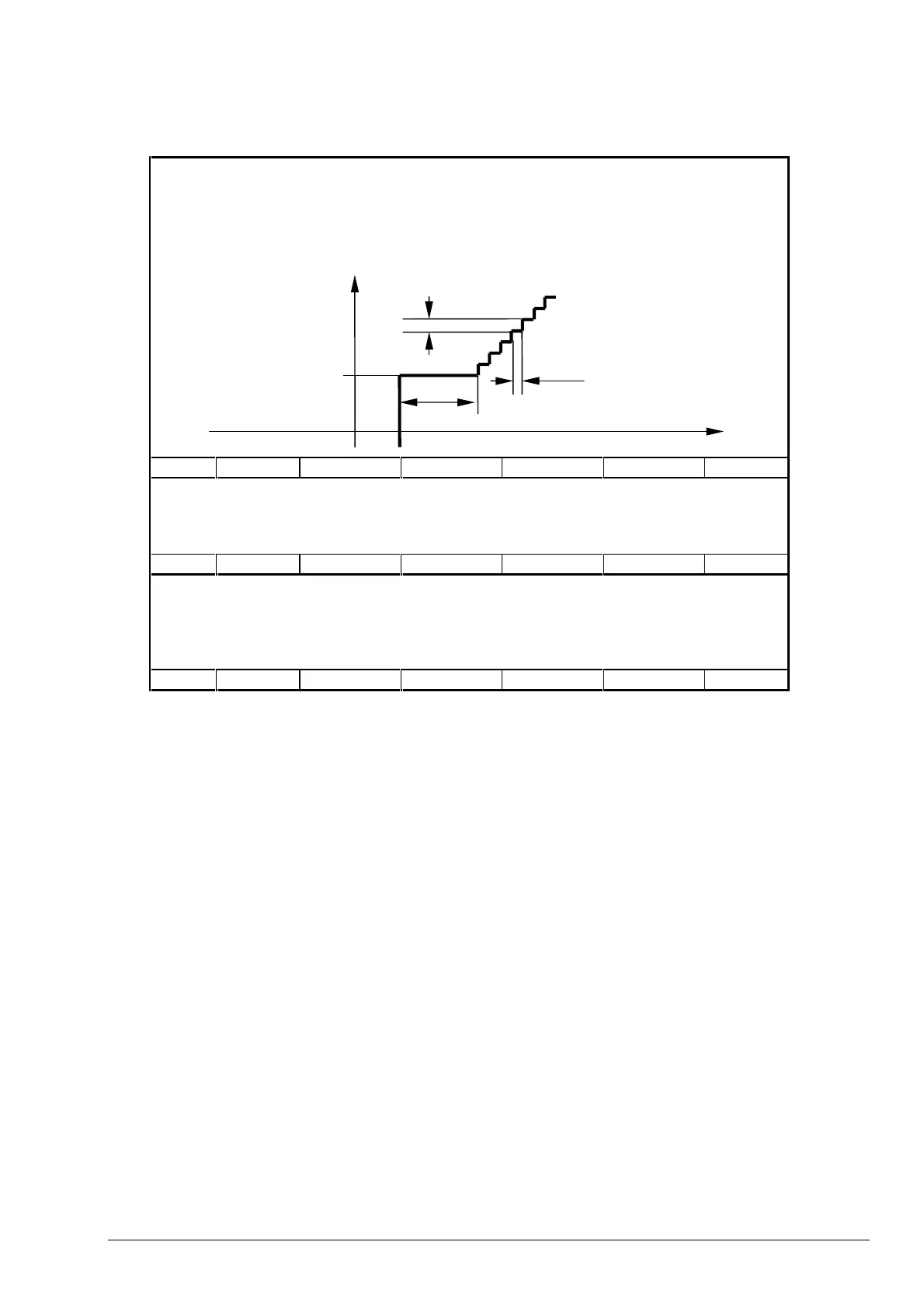

GEAR.TORQ_TIME
TORQUE
TIME
3,3ms at 50Hz
GEAR. TORQ_RAMP
GEAR.START_TORQ
