ABB DCS880 series User Manual

9DC Drives 9DC Drives
english

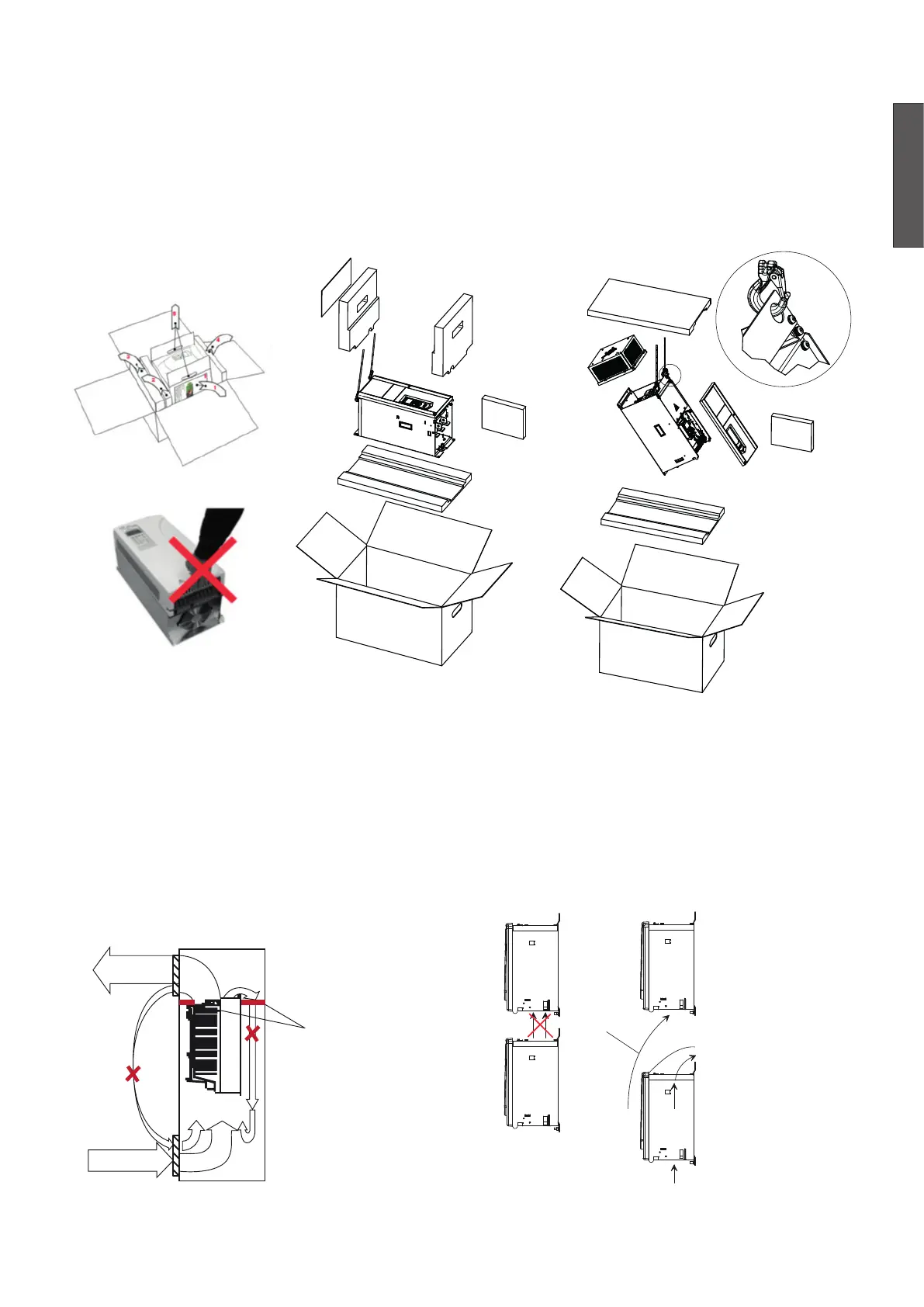

Unpacking and examining the delivery
Size H1 … H3 Size H4 Size H5
Do not lift the drive by the cover!
BG_DCS_001_verpackung_a.ai
A
A
Mechanical installation
Before installation
Install the drive in an upright position with the cooling section facing a wall. Check the installation site according to the
requirements below. Refer to chapter Dimensions and weights in the Hardware manual for frame details.
Cabinet installation
The required distance between parallel units is five millimetres (0.2 in.) in installations without the front cover. The cooling
air entering the unit must not exceed +40 °C (+104 °F).
Preventing cooling air recirculation Unit above another
Prevent air recirculation inside and outside the cabinet.
BG_800_004_luft_b.ai
Hot area
Cool area
Main air flow in
Air baffle plates
Main air flow out
max.+40°C
BG_800_003_luft_a.ai
Air baffle plate
Airflow
Lead the exhaust cooling air away from the unit above.
Distances see chapter Dimensions and weights.
—
Unpacking and mechanical installation

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
