Modifications reserved
3.4.3 Mode “ON-BATTERY” (Battery mode)
In ON-Battery Mode, the load is connected to the inverter (INV) and the inverter is supplied by the
battery. The utility main supply is not available (LINE 1)

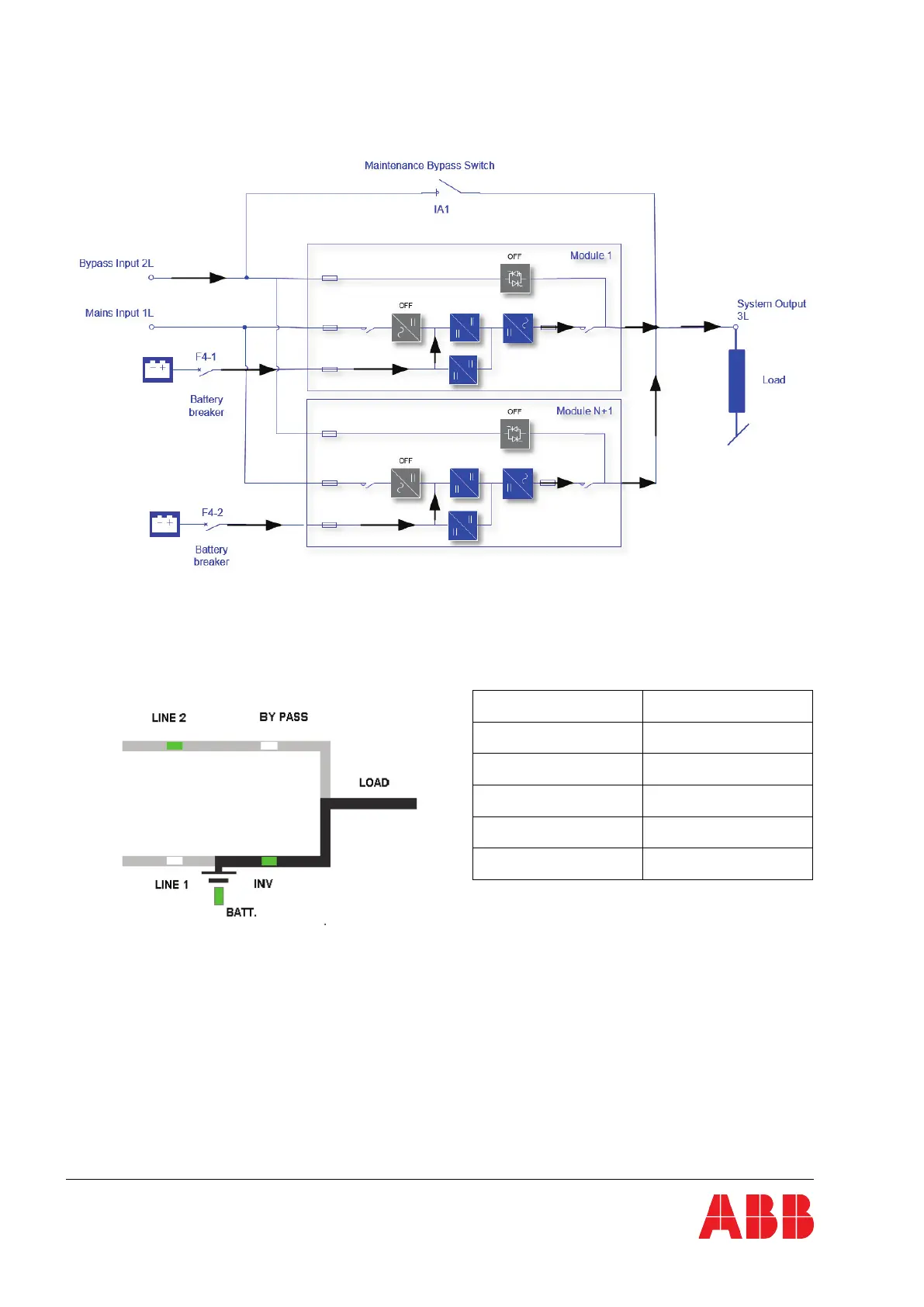

Fig 3.4.3-1: “ON BATTERY” operating mode
The ON-Battery Mode status is shown in the mimic of the control panel per module as follow:
LED Indicator Color
LINE 1 OFF
LINE 2 Green
BYPASS OFF
INVERTER Green
BATTERY Green
Fig 3.4.3-2: “ON BATTERY” control panel mimic
