ABB DPA UPScale ST40 - Page 49

Modifications reserved
Page 49/79
All voltage free contacts are rated 60 VAC max. and 500 mA max.:

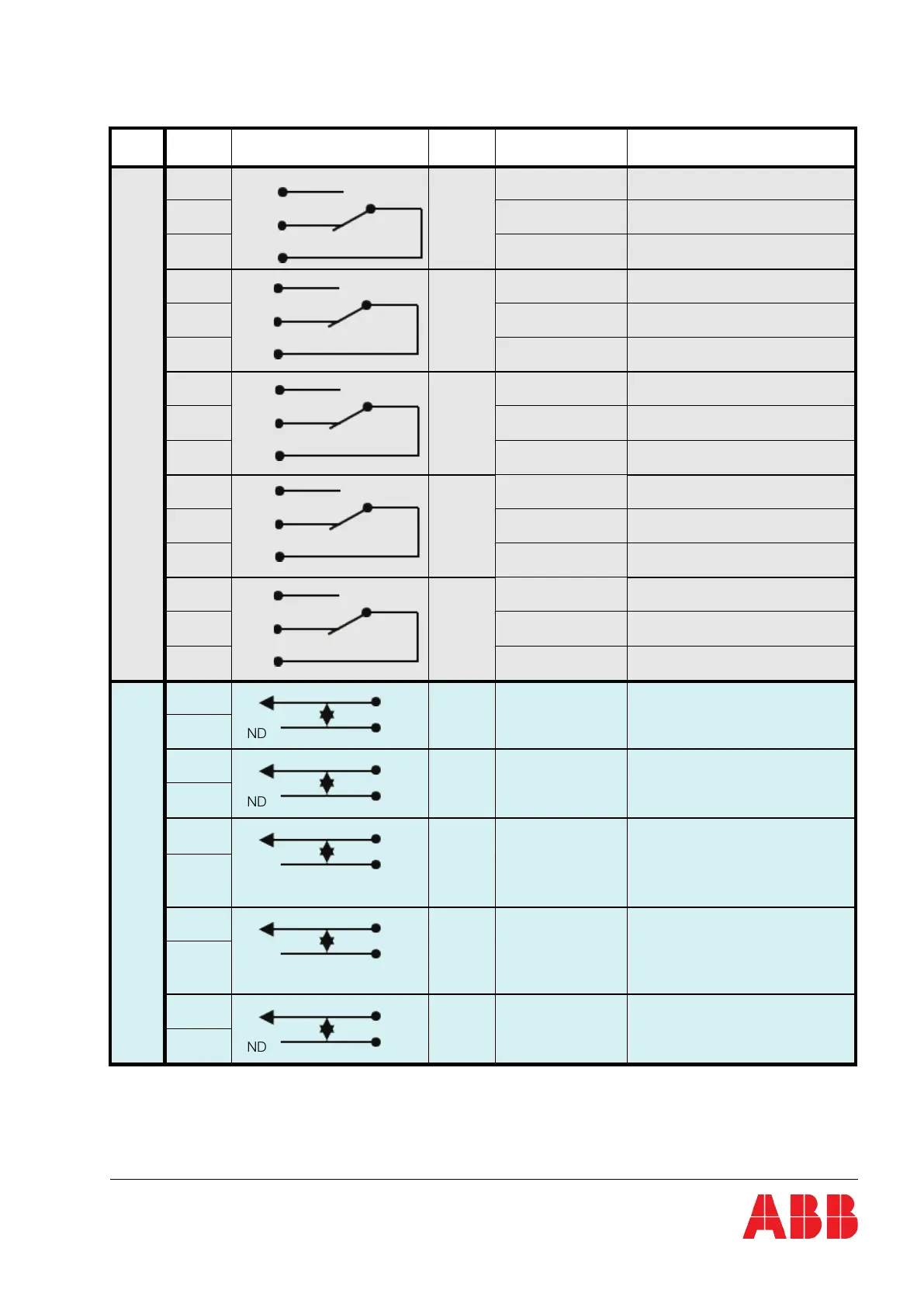

Block Terminal Contact Signal On Display Function
X2
X2 / 1 NO MAINS_OK Mains Present
X2 / 2 NC ALARM
Mains Failure
X2 / 3
C
Common
X2 / 4 NO LOAD_ON_INV
Load on Inverter
X2 / 5
NC
Message (Load on Mains bypass)
X2 / 6 C Common
X2 / 7 NO BATT_LOW
Battery Low
X2 / 8
NC
ALARM Battery OK
X2 / 9 C Common
X2 / 10
NO
LOAD_ON_MAINS
Load on bypass
(Mains)
X2 / 11 NC Message (Load on Inverter)
X2 / 12 C Common
X2 / 13
NO
COMMON_ALARM
Common Alarm
(System)
X2 / 14 NC ALARM NO Alarm Condition
X2 / 15 C Common
X1
X1 / 1
IN
+ 12Vdc
Generator Operation
X1 / 2 GND GND (NC = Generator ON)
X1 / 3
IN
+ 12Vdc
Customer IN 1
X1 / 4 GND GND (Function on request, to be defined)
X1 / 5
IN
+
3.3Vdc
Temperature Battery
X1 / 6 GND GND
(If connected , the battery charger
current if depending of the battery
temp.)
X1 / 7
IN
+ 12Vdc
Remote Shut down
X1 / 8 GND GND
(Do not remove the factory mounted
bridge until external Remote Shut
down is connected)
X1 / 9
IN
+ 12Vdc
12 Vdc sourse
X1 / 10 GND GND (max. 200 mA load)
Phoenix Spring Terminals (X1…X2) Connection
