Gas connections for Limas23 (Model EL3020)

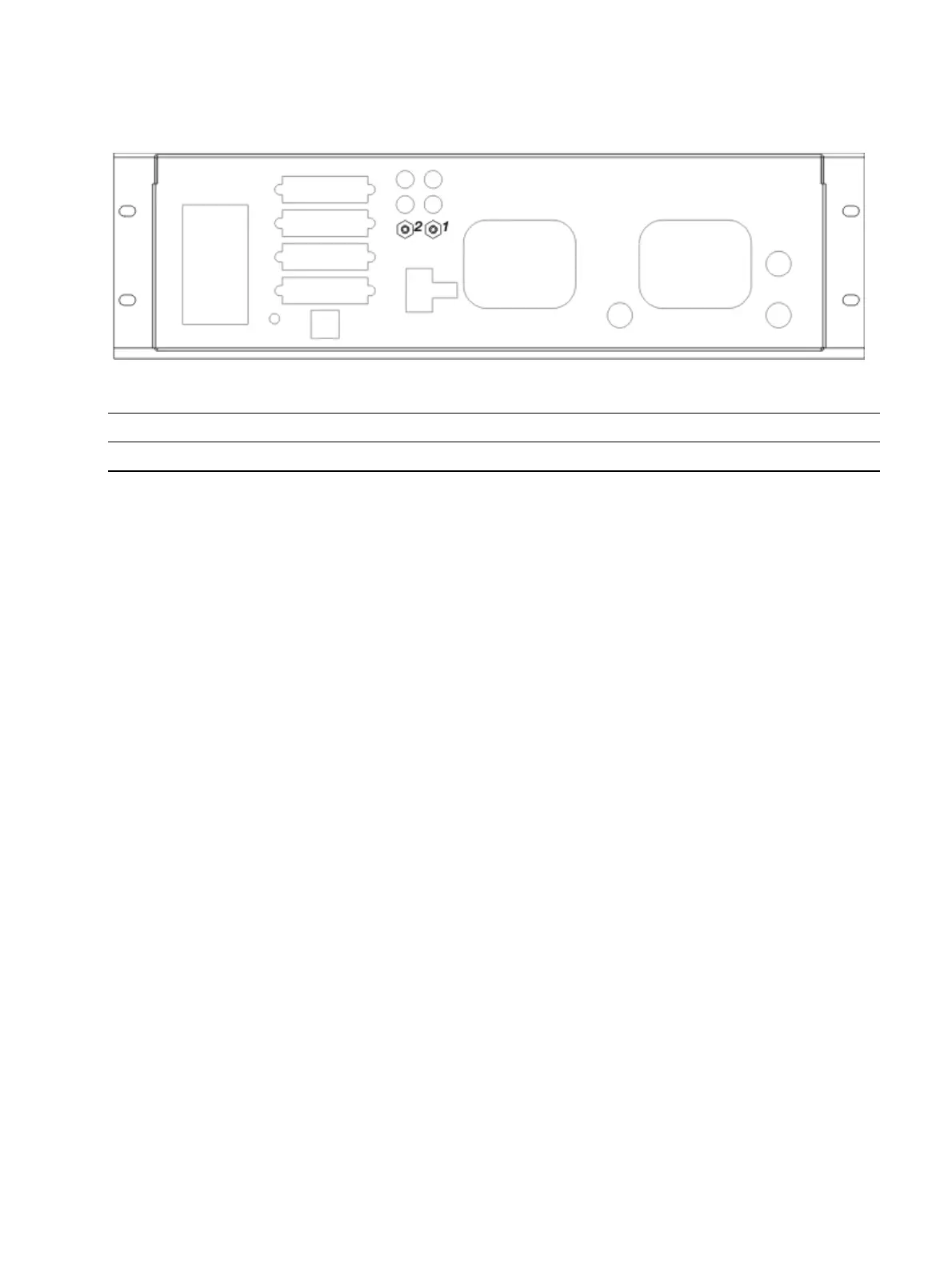

Limas23: Gas connections
1
Sample gas inlet
2
Sample gas outlet
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses with 4 mm inner
diameter (supplied)
Notes: The pressure sensor (standard) and the oxygen sensor (option) are connected internally in the
outlet of the sample cell.
