EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. B 55

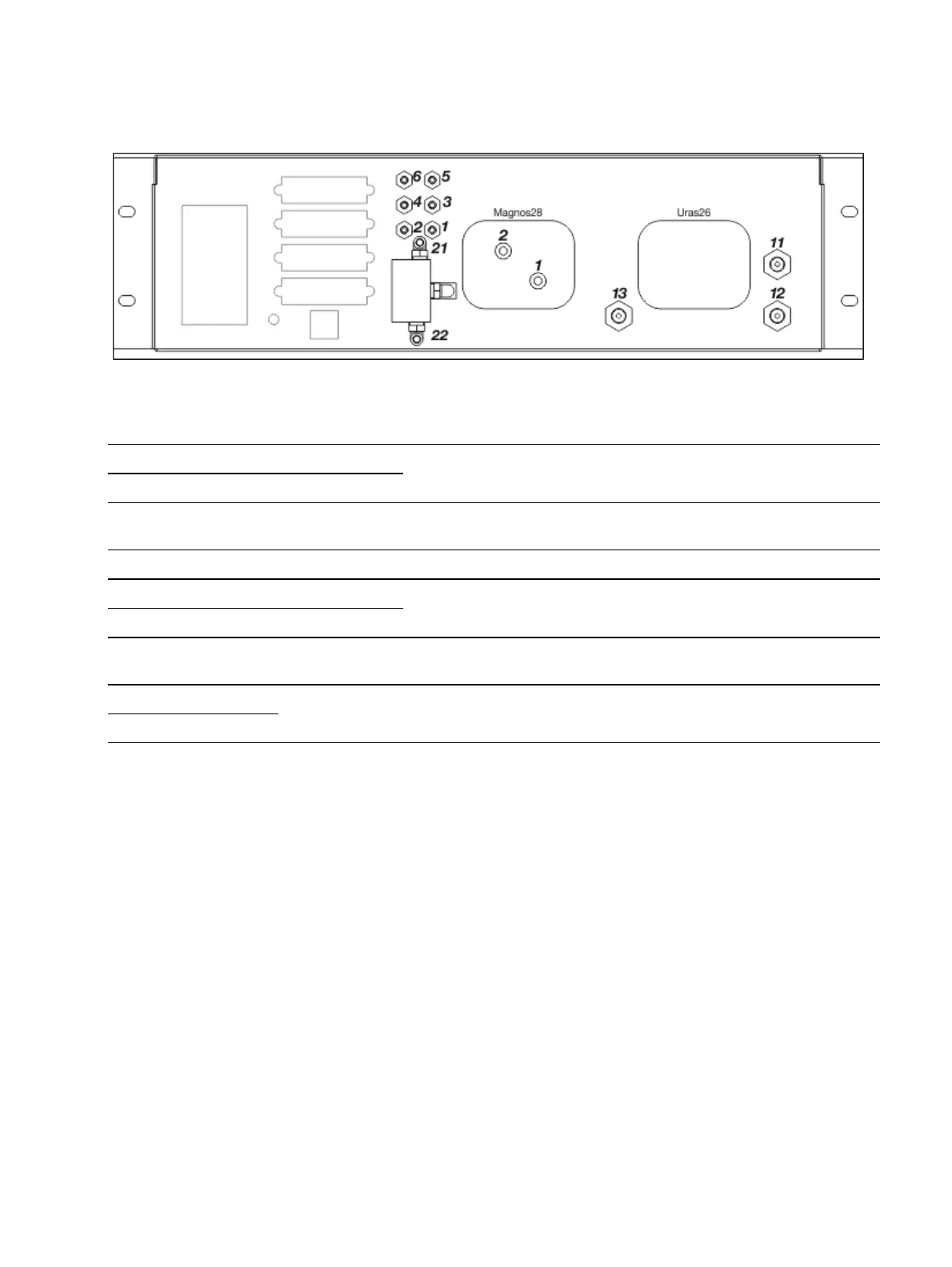

Gas connections for Uras26 with Magnos28 (Model EL3020)
Uras26: Gas connections for flexible tubes
(internal gas lines executed as flexible tubes)
1
Sample gas inlet Gas feed path 1 without option "Integrated gas feed"
2
Sample gas outlet Gas feed path 1
3
Sample gas outlet with the option "Integrated gas feed", connected ex works to 1 Sample gas inlet Gas
feed path 1
4
Sample gas inlet with the option "Integrated gas feed", only with flow sensor (without solenoid valve)
5
Sample gas inlet Gas feed path 2
6
Sample gas outlet Gas feed path 2
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses with 4 mm inner
diameter (supplied)
21
Sample gas inlet on the solenoid valve with the option "Integrated gas feed" with solenoid valve, pump,
filter, capillary tube and flow sensor
22
Test gas inlet
Design: Screwed fittings with hose nozzles (PVDF) for hoses with 4 mm inner diameter (supplied)
Note: The pressure sensor (standard) and the oxygen sensor (option) are internally connected as fol-
lows:
in the outlet of sample cell 1 with one sample cell and with separate gas feed paths,
in the outlet of sample cell 2 with two sample cells in series.
The second O2 sensor (option for version with two separate gas paths) is connected in the outlet
of sample cell 2.
