ABB Emax 2 Installation And Maintenance Guide

14| © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A 2TSA451011P0000 Rev-B

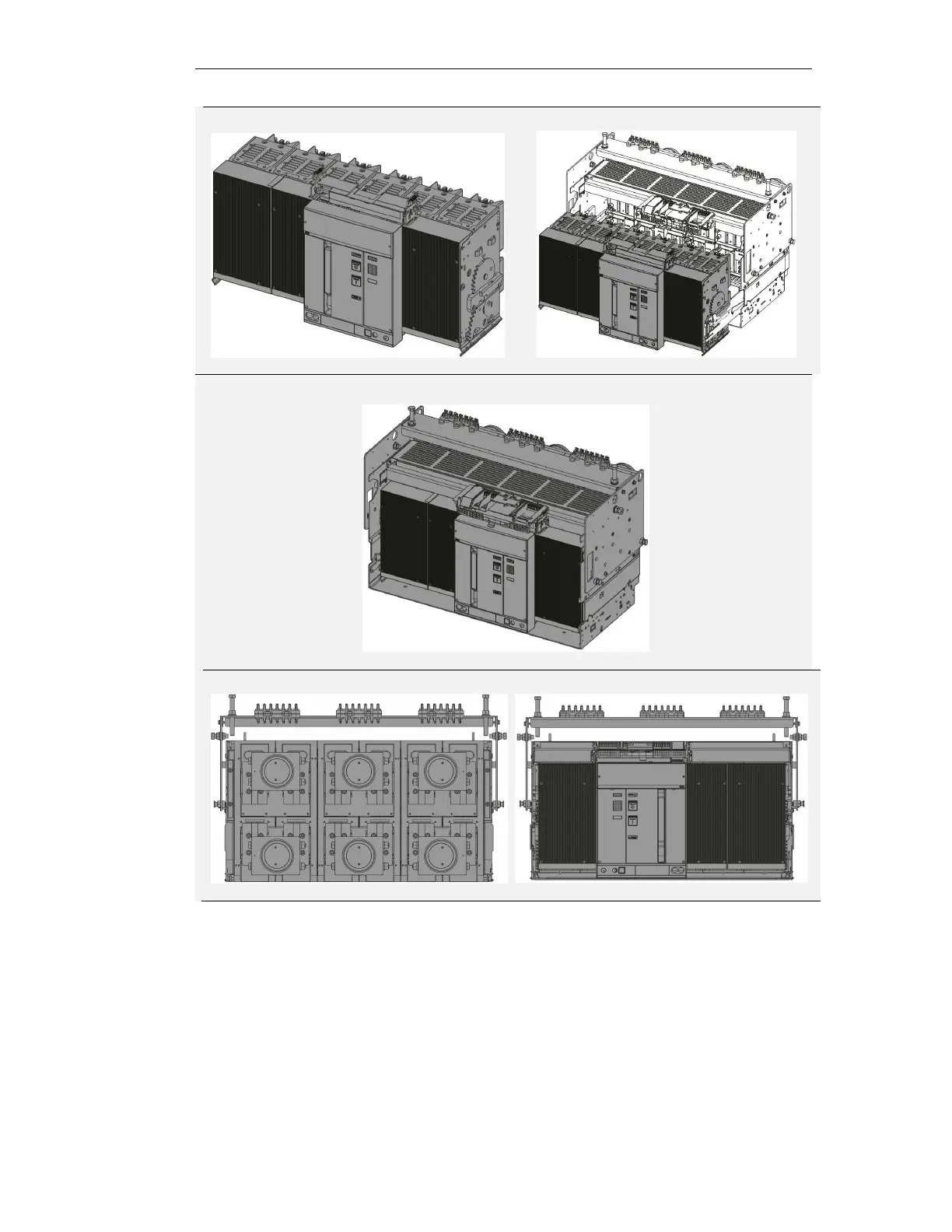

Figure 31 & 32
Figure 33
Figure 34 & 35
AK100, Emax 6.2 , 4000A Cradle in Cradle Retrofill Breaker
Fig
3
1. Emax 6.2
Circuit Breaker
(Moving Portion) Fig
3
2.
Circuit Breaker Projected from Cassette
Retrofill Kit
Fig 34. Rear View of Retrofill Kit Fig 35. Front View of Retrofill Kit

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
