33 - Programing 2K-1 signaling contacts output

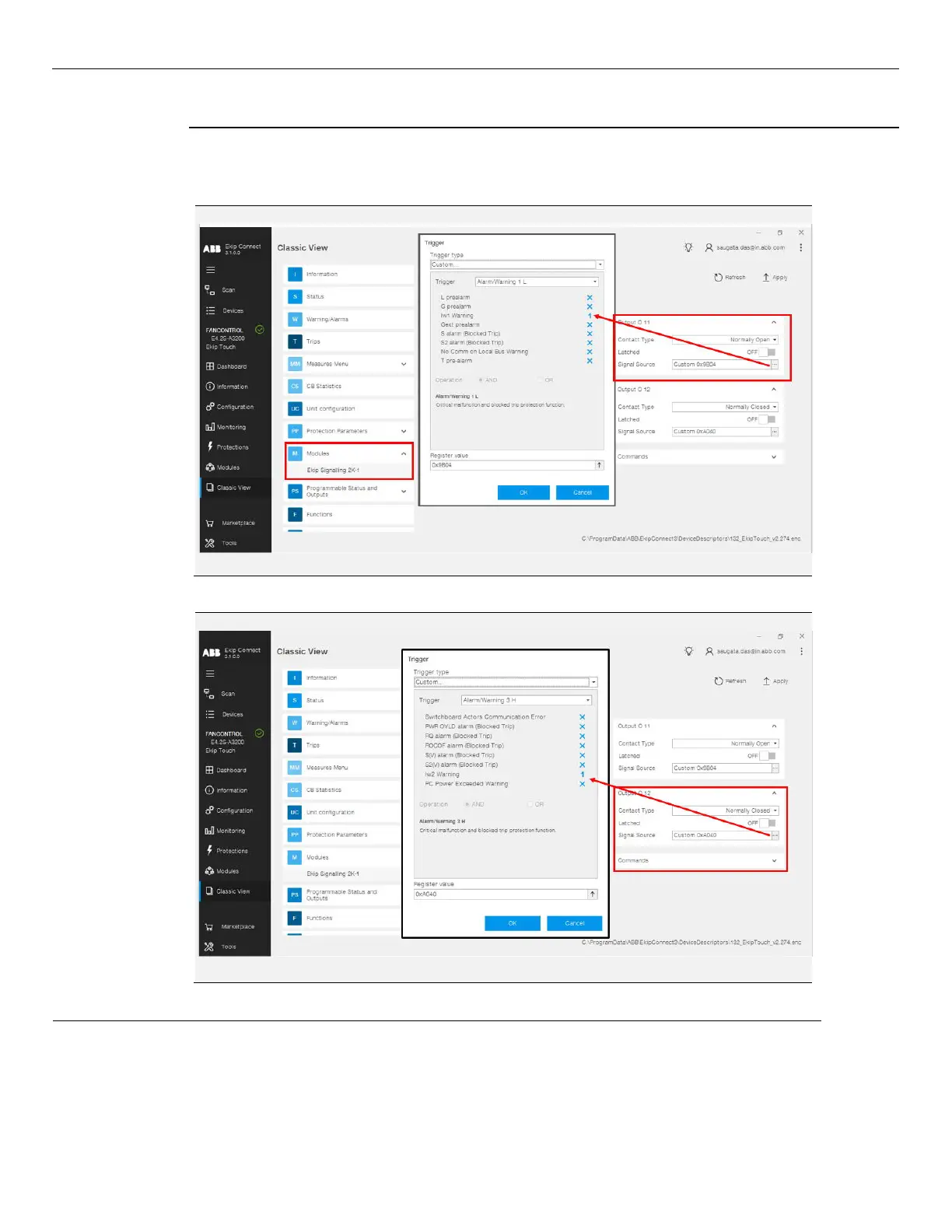

Figure 103
Figure 104
The output of 2K-1 module consists of 2 contacts K11-K12 and K13-K14. Configure these two
output contacts as per following to control the fans.

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
