46| © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A 2TSA451011P0000 Rev-B

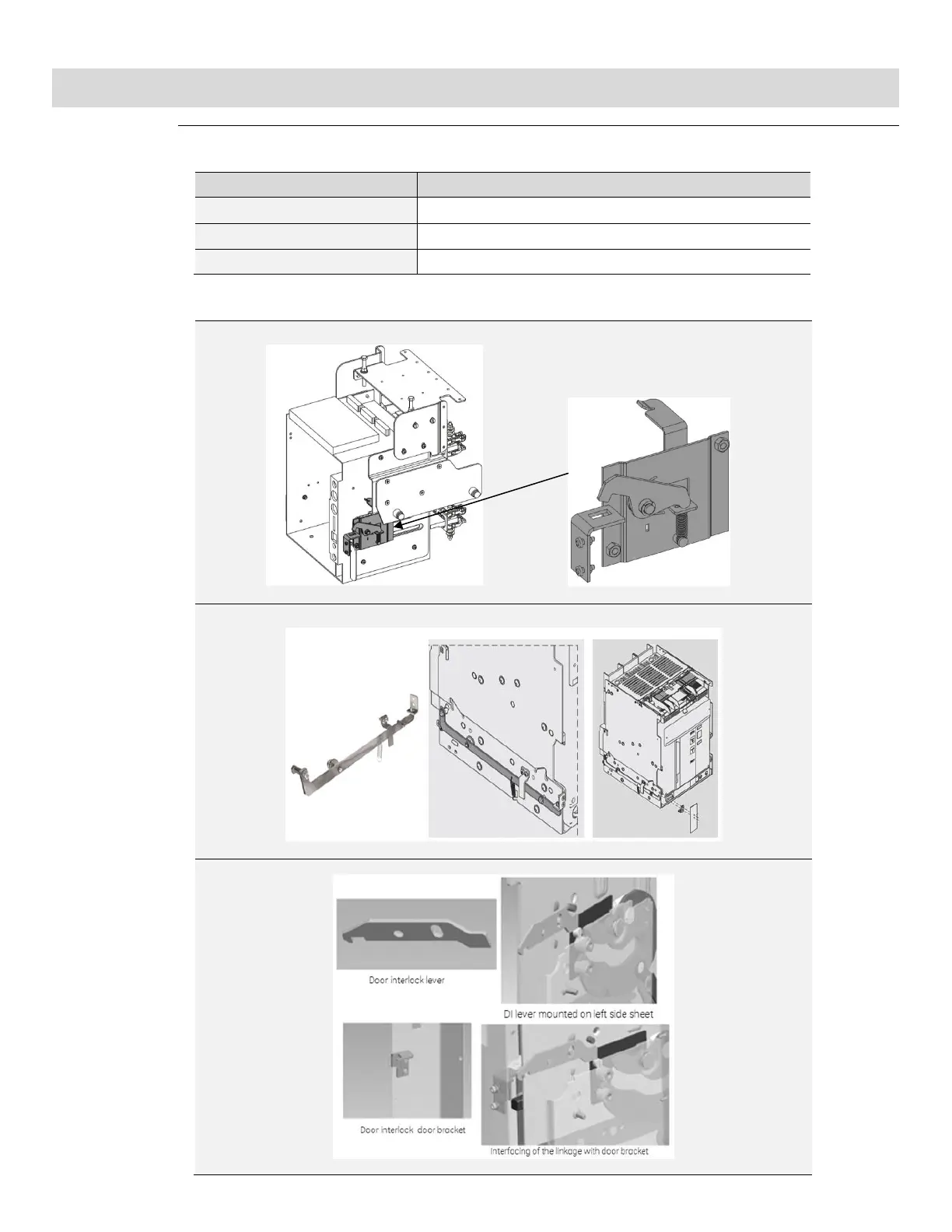

Install Door Interlock Accessory
Refer the below table for detailed installation instructions for all AKD5 door interlocks.
Table 8
Retrofill Breaker Installation Manual Number
AKD5-AK25/Emax 1.2 2TSA451017P0000
AKD5-AK50/Emax 2.2
1SDH001000R0709
AKD5-AKT50/Emax 2.2
DEH-41304
Below representations are provided only to show the overview of the interlock assemblies.
Figure 89
Components that make up AKD-5, AK25 Retrofill Door interlock assembly
Figure 90
Components that make up AKD-5, AK50 Retrofill Door interlock assembly
Figure 91
Components that make up AKD-5, AK50T Retrofill Door interlock assembly

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
