22| © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A 2TSA451011P0000 Rev-B

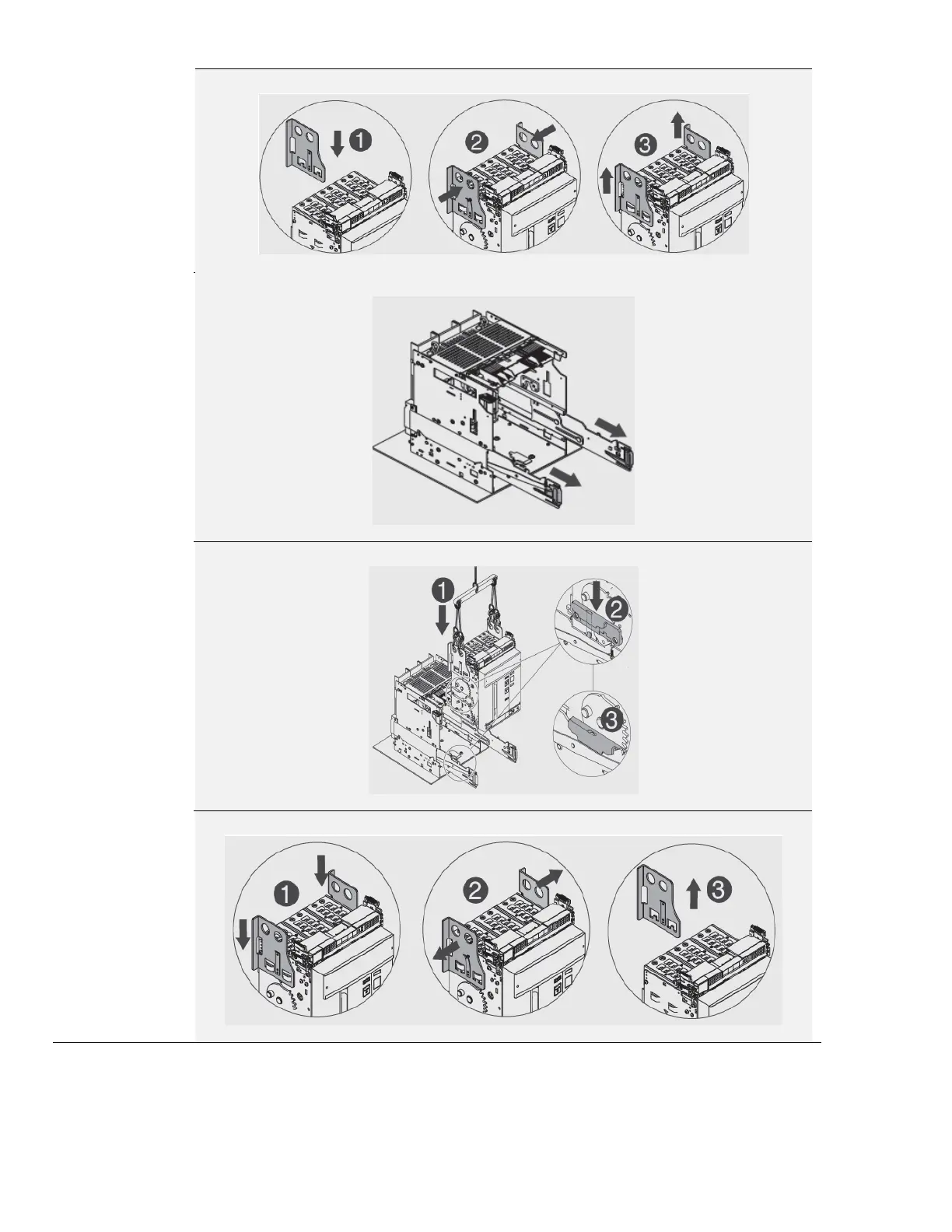

Figure 46
Emax2.2/4.2/6.2 Moving Portion Lifting Plates
Figure 47
Emax2.2/4.2/6.2 Loading Rails
Figure 48
Loading Emax2 Breaker Into the Cradle
Figure 49
Disengagement of Lifting Plates from Emax2 Breaker
