ABB Emax 2 Installation And Maintenance Guide

2TSA451011P0000 Rev-B © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A | 7

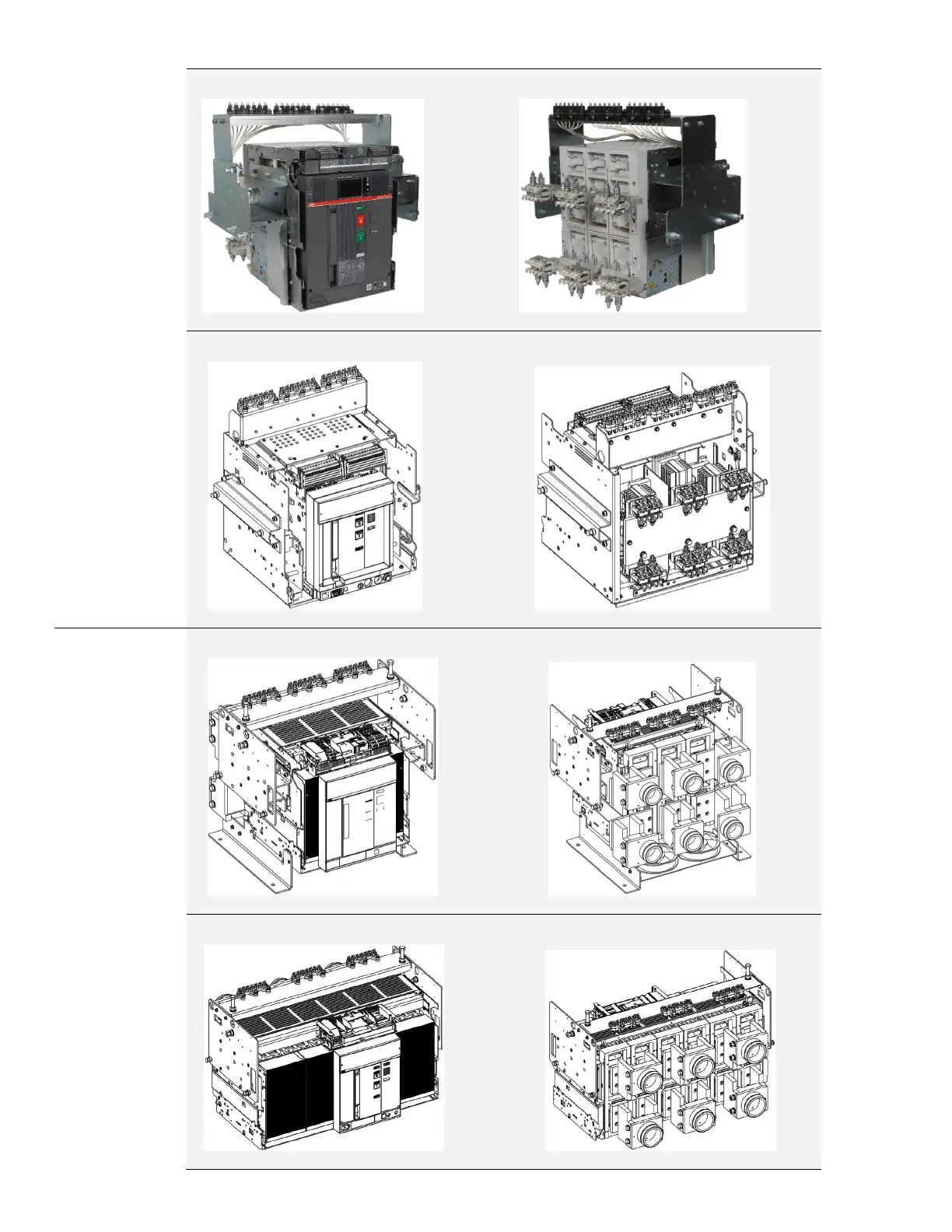

Figure 3 & 4
AKD-5 1600A Breaker in Cassette
Fig 3. Front View Fig 4. Rear View
Figure 5 & 6
AKD-5 2000A Breaker in Cassette
Fig 5. Front View Fig 6. Rear View
Figure 7 & 8
AKD-5 3000A Breaker in Cassette
Fig 7. Front View Fig 8. Rear View
Figure 9 & 10
AKD-5 4000A Breaker in Cassette
Fig 9. Front View Fig 10. Rear View

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
