F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 2 Mechanical Installation
8 OI/FEF/FEV/FEW–EN Rev. D

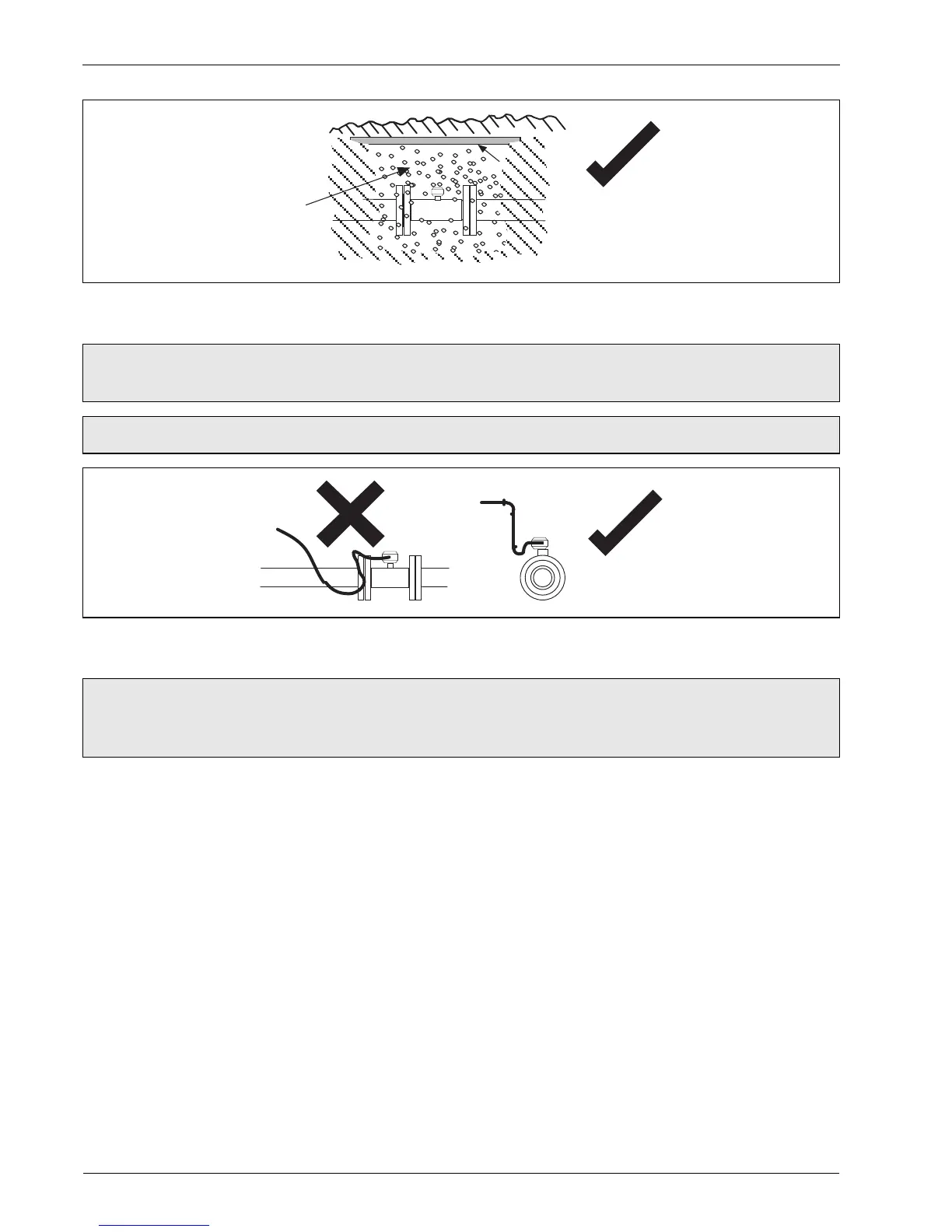

Fig. 2.12 Underground
Caution. When burying a flowmeter, ensure it can be found easily if required (for example, mark the
installation position with a post). Installing a protection plate above the meter is also recommended.
Note. For further advice when burying flowmeters, contact the ABB Service Organization.
Fig. 2.13 Cable Routing
Caution. Install all flowmeter cabling neatly. Installation within a conduit is recommended. Install the
cabling or conduit with a U-bend below the terminal connection box height to prevent water ingress into
the flowmeter sensor by capillary action.
