Electromagnetic flowmeters | Full-bore flow sensors 5 Sensor dimensions
30 OI/FEF/FEV/FEW–EN Rev. D
5.3 FEW – DN450 to 2400 (18 to 96 in. NB)
Dimensions in mm (in.)

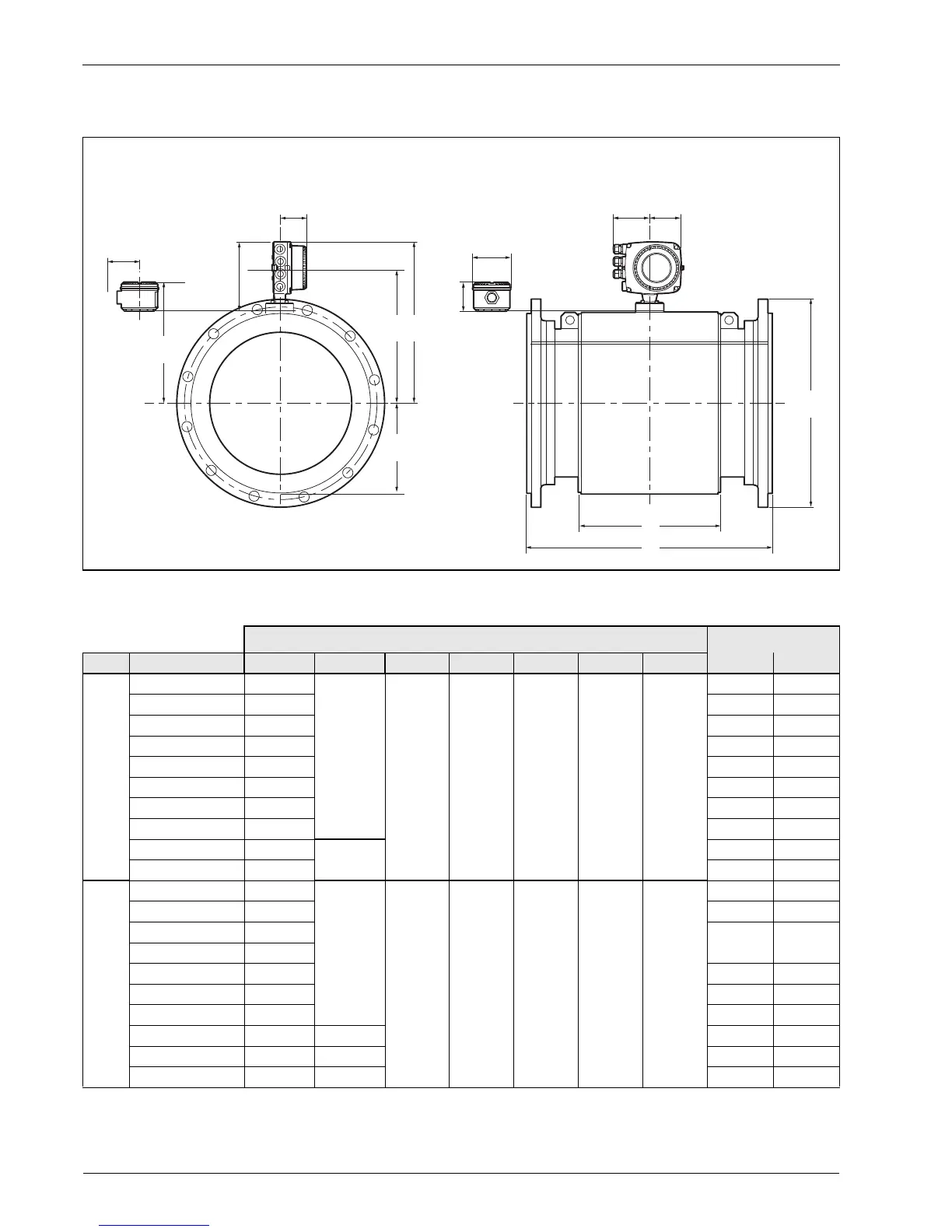

Fig. 5.3 DN450 to 2400 (18 to 96 in. NB) (FEW)
Dimensions in mm (in.)
Approx. weight in kg (lb)
DN Mating flange type D L F C E G A Integral Remote
DN450
(18 in.)
PN10 615 (24.21) 600 (23.62) 514 (20.24) 310 (12.20) 439 (17.28) 394 (15.51) 328 (12.91) 173 (381) 171 (377)
PN16 640 (25.20) 188 (414) 186 (410)
JIS5K 605 (23.82) 165 (364) 163 (359)
JIS10K 620 (24.41) 177 (390) 175 (386)
AS4087 PN16 640 (25.20) 232 (511) 230 (507)
AS4087 PN35 675 (26.57) 328 (723) 326 (718)
ASME B16.5 CL300 710 (27.95) 368 (811) 366 (807)
ASME B16.5 CL150 635 (25.00) 250 (551) 248 (547)
PN25 670 (26.38) 686 (27.01) 245 (540) 243 (536)
PN40 685 (26.97) 315 (694) 313 (690)
DN500
(20 in.)
PN10 670 (26.38) 600 (23.62) 514 (20.24) 310 (12.20) 439 (17.28) 394 (15.51) 367 (14.45) 190 (418) 188 (413)
PN16 715 (28.15) 240 (528) 238 (524)
JIS5K 655 (25.79) 190 (418) 188 (413)
JIS10K 675 (26.57)
AS4087 PN16 705 (27.76) 290 (638) 288 (634)
AS4087 PN35 735 (28.94) 435 (957) 433 (953)
ASME B16.5 CL150 700 (27.56) 300 (660) 298 (656)
ASME B16.5 CL300 775 (30.51) 762 (30.00) 490 (1080) 488 (1076)
PN25 730 (28.74) 700 (27.56) 300 (661) 298 (657)
PN40 755 (29.72) 762 (30.00) 392 (864) 390 (860)
Table 5.3 DN450 to 2400 (18 to 96 in. NB) (FEW) dimensions / weights
F
E
C
G
89
(3.5)
77.8
(3.06)
104
(4.1)
104.5
(4.11)
98
(3.86)
201
(7.91)
78
(3.1)
A
L
D
