ABB FEF series User Manual

F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 5 Sensor dimensions
28 OI/FEF/FEV/FEW–EN Rev. D
5.2 FEW – DN150 to 400 (6 to 16 in. NB)
Dimensions in mm (in.)

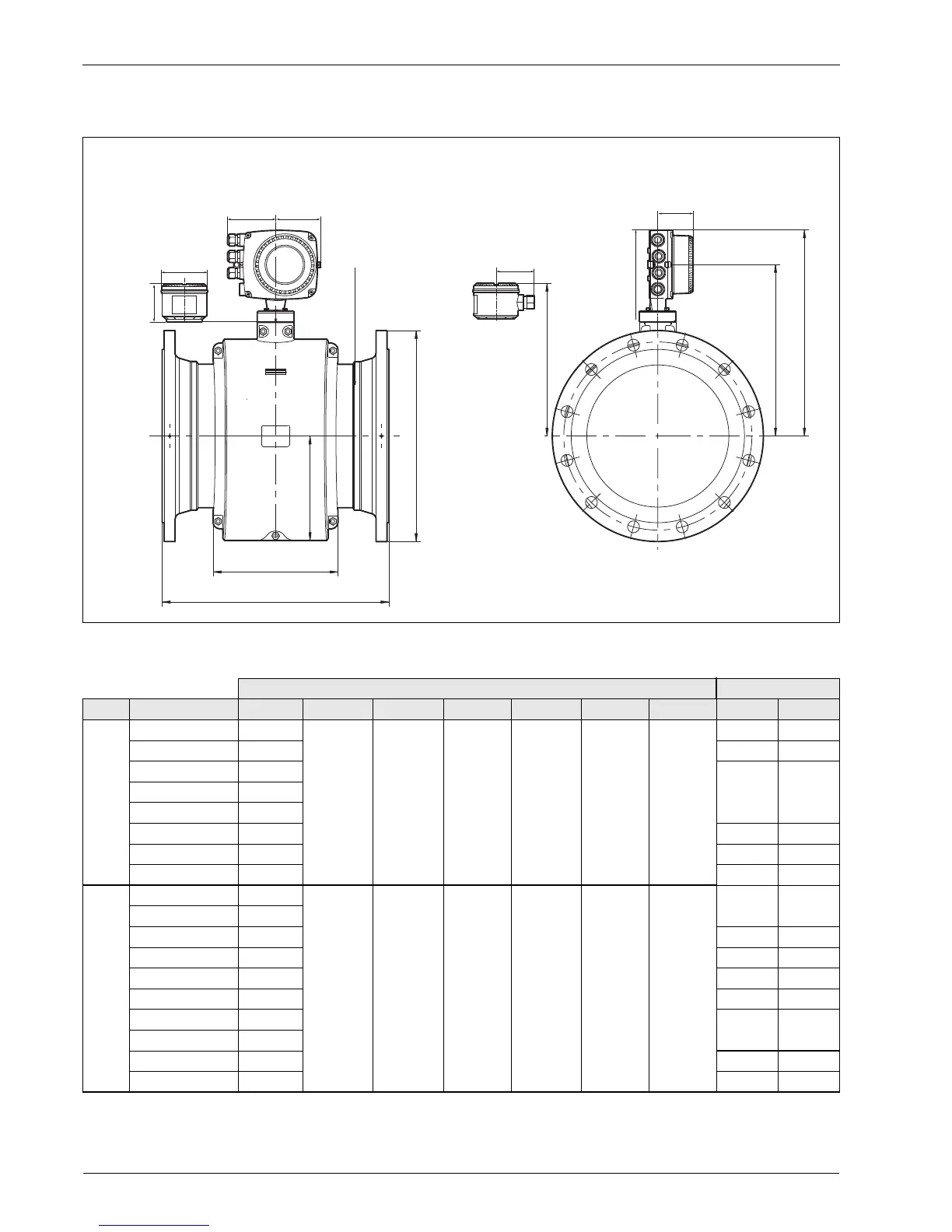

Fig. 5.2 DN150 to 400 (6 to 16 in. NB) (FEW)
Dimensions in mm (in.) Approx. weight in kg (lb)
DN Mating flange type D L F C E G A Integral Remote
DN150
(6 in.)
PN10 to 16 285 (11.22) 300 (11.81) 371 (14.61) 146 (9.88) 296 (11.65) 251 (9.88) 166 (6.54) 33 (73) 31 (68)
PN25 to 40 300 (11.81) 39 (86) 37 (81)
JIS5K 265 (10.43) 33 (73) 31 (68)
JIS10K 280 (11.02)
AS4087 PN16 280 (11.02)
AS4087 PN35 305 (11.81) 39 (86) 37 (81)
ASME B16.5 CL300 320 (12.60) 47 (103) 45 (99)
ASME B16.5 CL150 279 (10.98) 33 (73) 31 (68)
DN200
(8 in.)
PN10 340 (13.39) 350 (13.78) 411 (16.18) 170 (6.69) 336 (13.23) 291 (11.46) 200 (7.87) 41 (90) 39 (86)
PN16 340 (13.39)
PN25 360 (14.17) 55 (121) 53 (117)
PN40 375 (14.76) 65 (143) 63 (139)
AS4087 PN16 335 (13.19) 41 (90) 39 (86)
AS4087 PN35 370 (14.57) 65 (143) 63 (139)
JIS5K 320 (12.60) 41 (90) 39 (86)
JIS10K 330 (12.99)
ASME B16.5 CL300 380 (14.96) 72 (158) 70 (154)
ASME B16.5 CL150 345 (13.58) 50 (110) 48 (106)
Table 5.2 DN150 to 400 (6 to 5 in. NB) (FEW) dimensions / weights
D
E
G
C
A
L
89
(3.5)
77.8
(3.06)
Ø104
(4.1)
104.5
(4.11)
98
(3.86)
78
(3.1)
201
(7.91)
F
