ABB FEF series User Manual

F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 5 Sensor dimensions
36 OI/FEF/FEV/FEW–EN Rev. D
5.4 FEV – DN40 to 200 (1
1
/2 to 8 in. NB)
Dimensions in mm (in.)

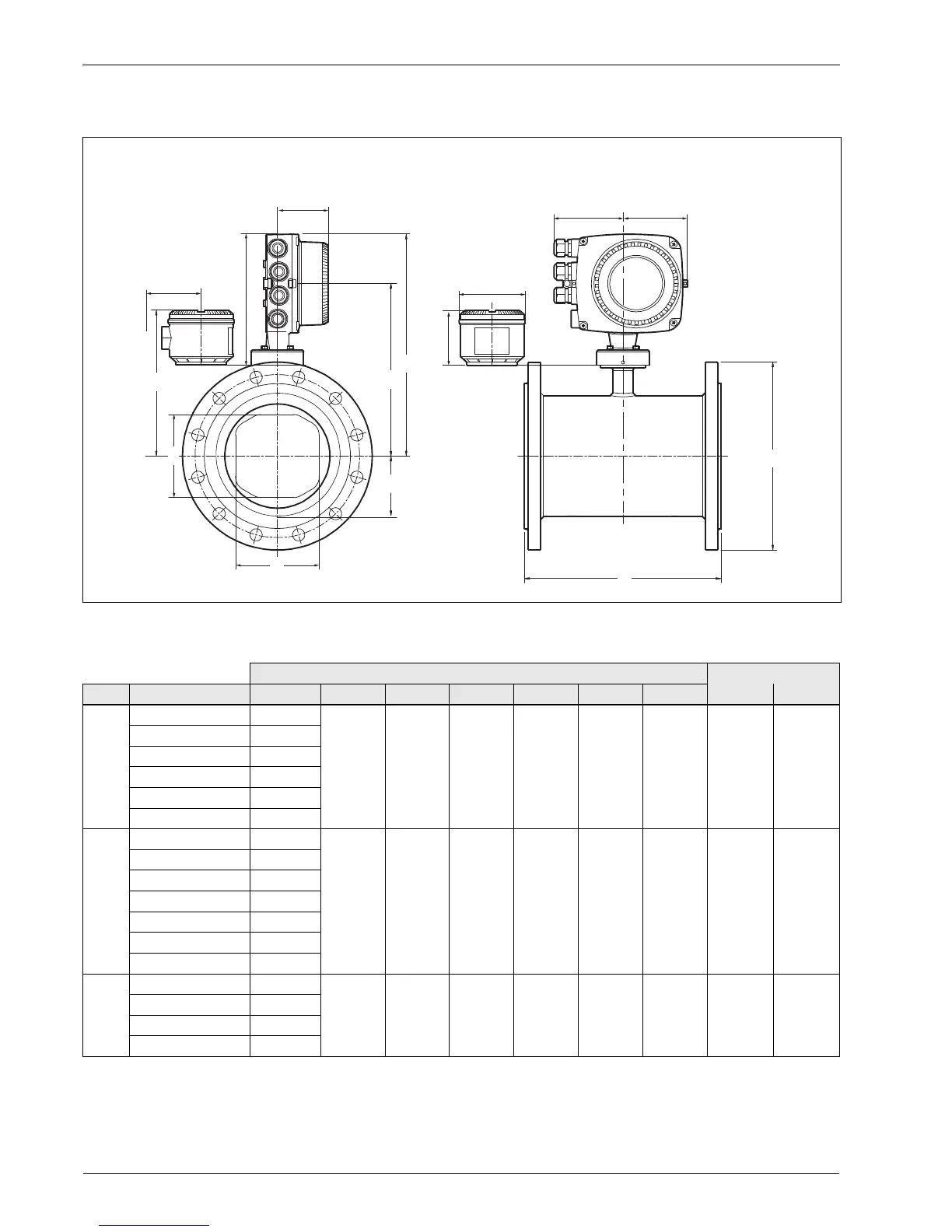

Fig. 5.4 DN40 to 200 (1
1
/2 to 8 in. NB) (FEV)
Dimensions in mm (in.) Approx. weight in kg (lb)
DN Mating flange type D L F C E G X Integral Remote
DN40
(1
1
/2 in.)
EN1092-1 PN10, PN40 150 (5.91) 200 (7.87) 260 (10.24) 30.4 (1.20) 185 (7.28) 138 (5.43) 30 (1.18) 12 (27) 11 (24)
ASME B16.5 CLASS 150 127 (5.00)
JIS 10K 140 (5.51)
AS2129 TABLE F 140 (5.51)
AS2129 TABLE C D E 135 (5.31)
AS4087 PN14 135 (5.31)
DN50
(2 in.)
EN1092-1 PN10, PN16 165 (6.50) 200 (7.87) 270 (10.63) 38.3 (1.51) 195 (7.68) 146 (5.75) 38 (1.50) 13 (29) 12 (27)
ASME B16.5 CLASS 150 152.4 (6.00)
JIS 10K 155 (6.10)
AS4087 PN21 165 (6.50)
AS2129 TABLE F 165 (6.50)
AS2129 TABLE C D E 150 (5.91)
AS4087 PN14, PN16 150 (5.91)
DN65
(2
1
/2 in.)
AS4087 PN14, PN16 165 (6.50) 200 (7.87) 275 (10.83) 45.2 (1.78) 200 (7.87) 152 (5.98) 48 (1.89) 15 (33) 14 (31)
AS2129 TABLE C D E 165 (6.50)
EN1092-1 PN10 185 (7.28)
EN1092-1 PN16 185 (7.28)
Table 5.4 DN40 to 200 (1
1
/2 to 8 in. NB) (FEV) dimensions / weights
L
D
E
C
G
89
(3.5)
77.8
(3.06)
Ø104
(4.1)
104.
5
(4.11)
98
(3.86)
78
(3.1)
201
(7.91)
X
X
F
