Electromagnetic flowmeters | Full-bore flow sensors 2 Mechanical Installation
OI/FEF/FEV/FEW–EN Rev. D 9

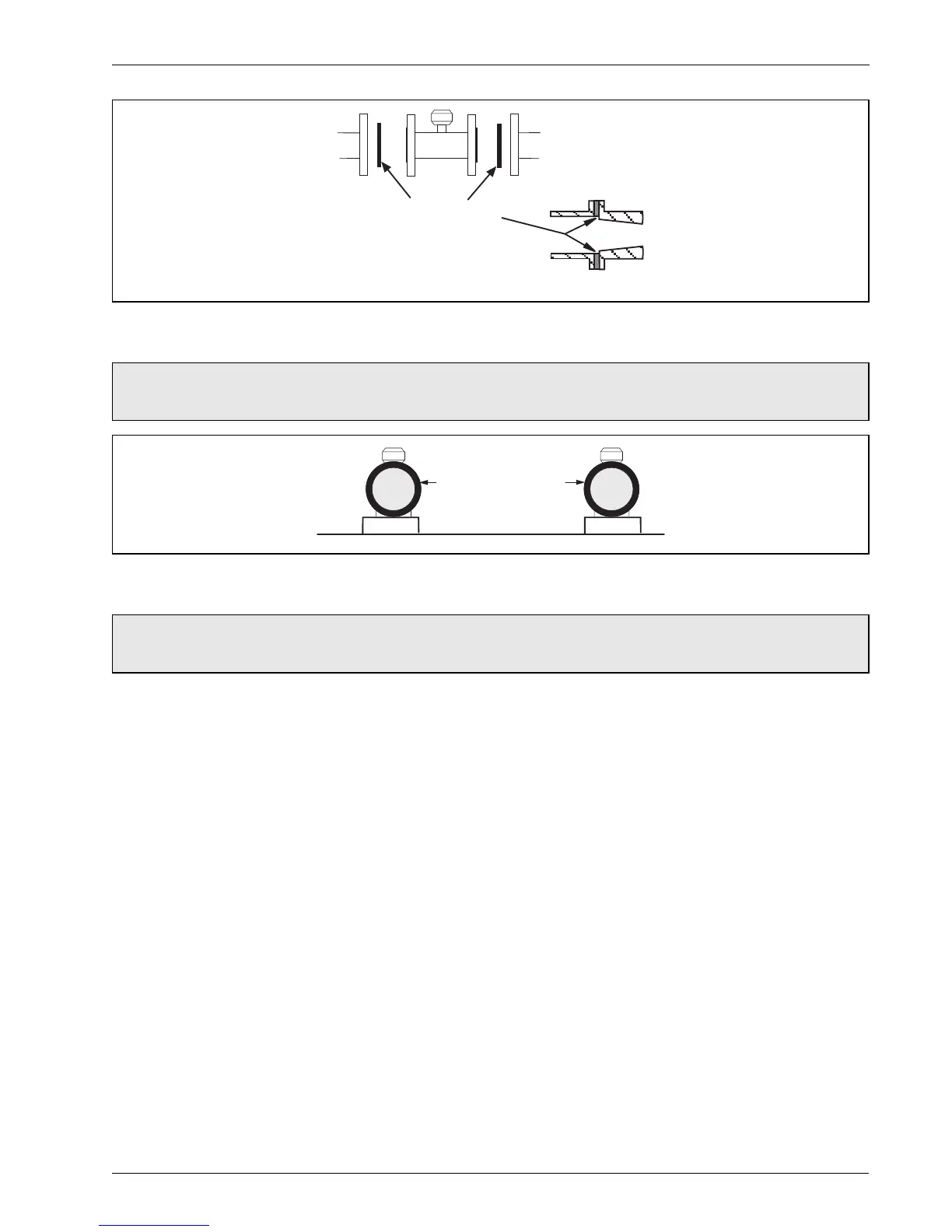

Fig. 2.14 Gasket Fitting
Caution. Use correctly sized gaskets. Do NOT fit gaskets that will extend into the flow area – the
turbulence caused will adversely affect flowmeter accuracy.
Fig. 2.15 Separation of Sensors
Caution. If flowmeters are installed in adjacent pipelines, ensure they are at least 0.7 m (2.3 ft.) apart to
prevent the electromagnetic field from one meter affecting the other.
Fit Gaskets
Gaskets Same Size as Pipe
0.7 m (2.3 ft) Min.
