F, V, W S e r i e s
Electromagnetic flowmeters | Full-bore flow sensors 2 Mechanical Installation
OI/FEF/FEV/FEW–EN Rev. D 7

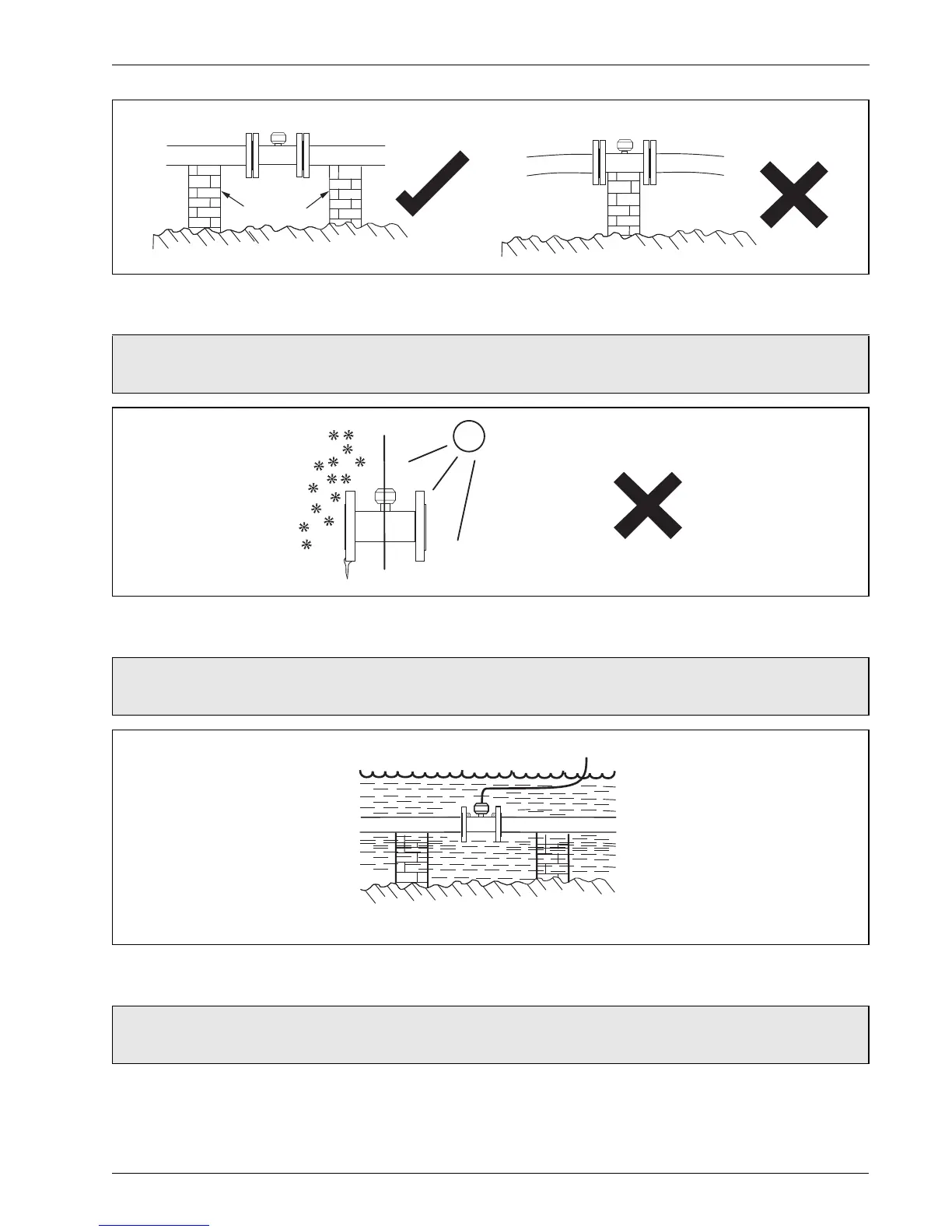

Fig. 2.9 Above Ground
Caution. Do NOT install the flowmeter in a manner that will subject it to mechanical tension (torsion,
bending). If required, support the pipeline. Remember – the flowmeter is a measuring instrument.
Fig. 2.10 Temperature Difference
Caution. Do NOT install the flowmeter in a position that will expose it to direct sunlight. Provide
appropriate sun protection if required.
Fig. 2.11 Within Environmental Rating
Caution. Ensure the level of IP rating is correct for the required meter installation application. IP68
(NEMA 6) rated meters can be continuously submerged.
