28
Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26

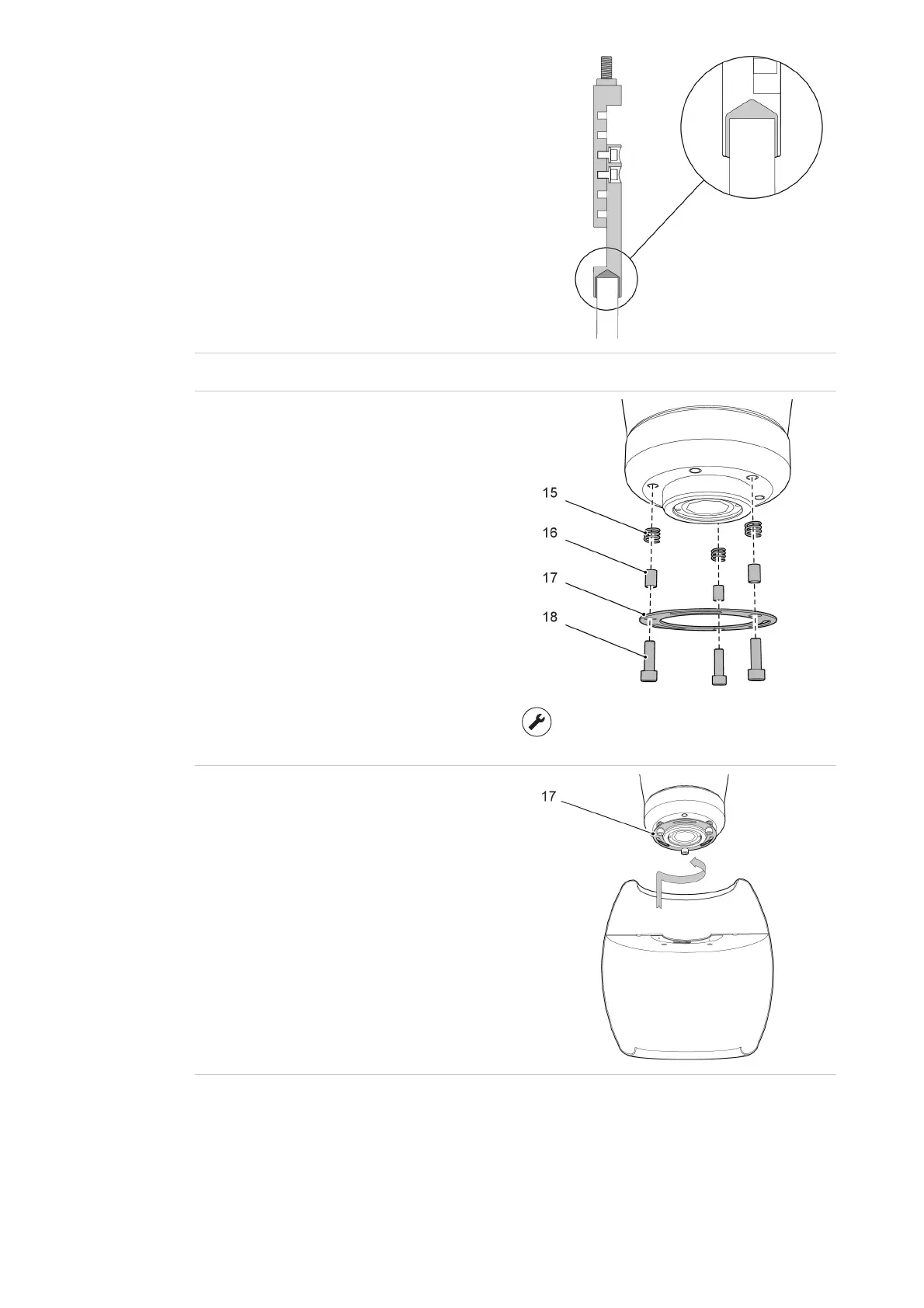

2. Braze the draw lead (2) from the transformer
windings to the inner terminal (32).
G004513
3.
Carefully clean the bottom end of the bushing, and the inside of the center hole. Look for damage.
4.
Install the springs (15), the guiding sleeves (16),
the pressing ring (17), and the hex screws (18) to
the bottom end of the bushing.
G005016
Torque
40 Nm
5.
Install the end shield:
1. Push the end shield carefully against the
pressing ring (17), until the hex screw heads
come through the holes in the end shield.
2. Turn the end shield clockwise approximately
20°, to its locked position.
G005032
