Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
45

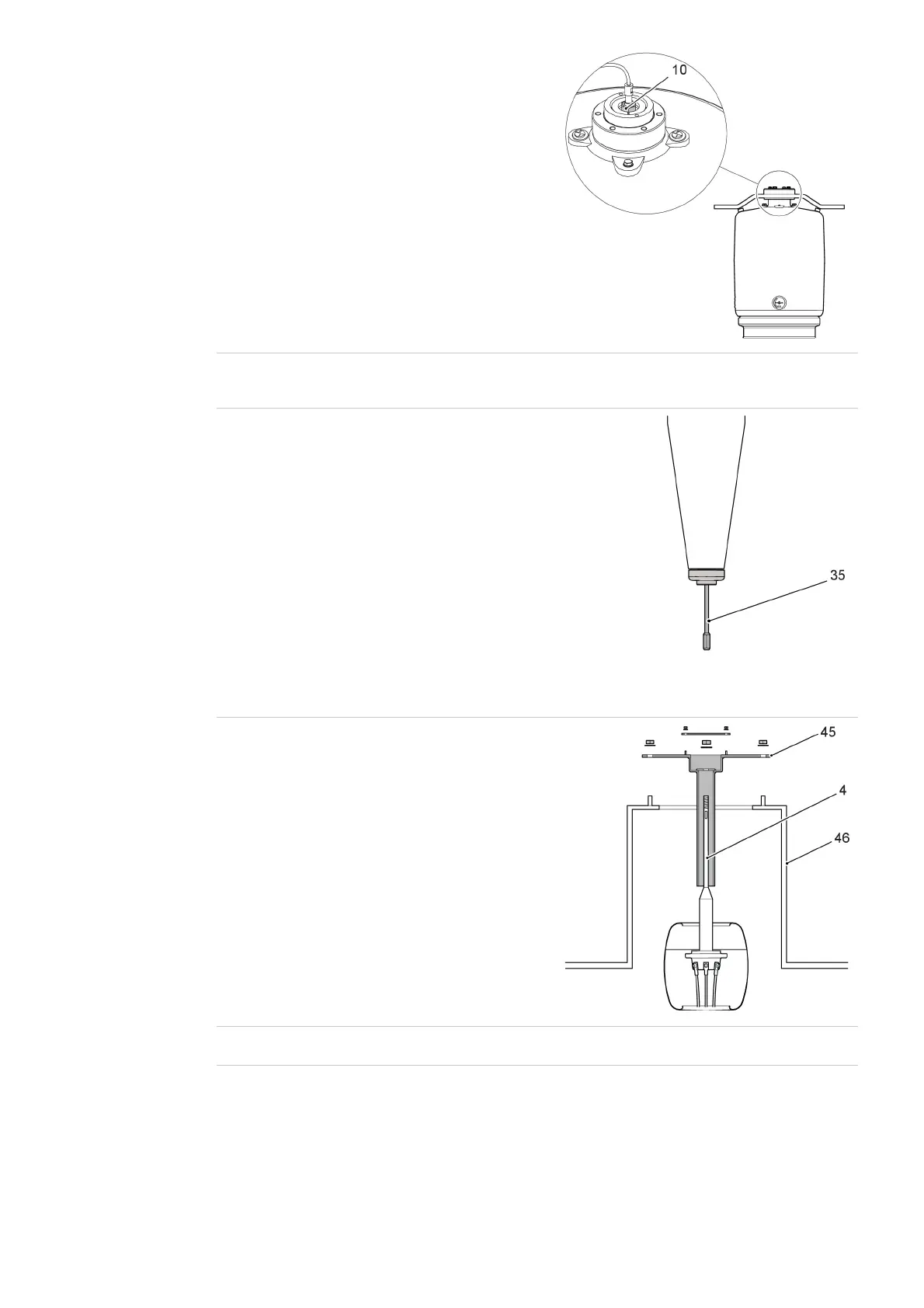

6. Remove the M16 nut (10), and washer.
G003055
7.
With a soft cloth, carefully clean the bottom end of the bushing, and the inside of the center hole. Look
for damage.
8.
Pull down the upper draw rod (35) from the
bottom end of the bushing.
G005040
9.
Remove the transport cover (45) from the
transformer (46) and the lower draw rod (4).
G005041
10.
Lift the bushing to a position above the installation opening on the transformer.
End of instruction
