Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
Procedure

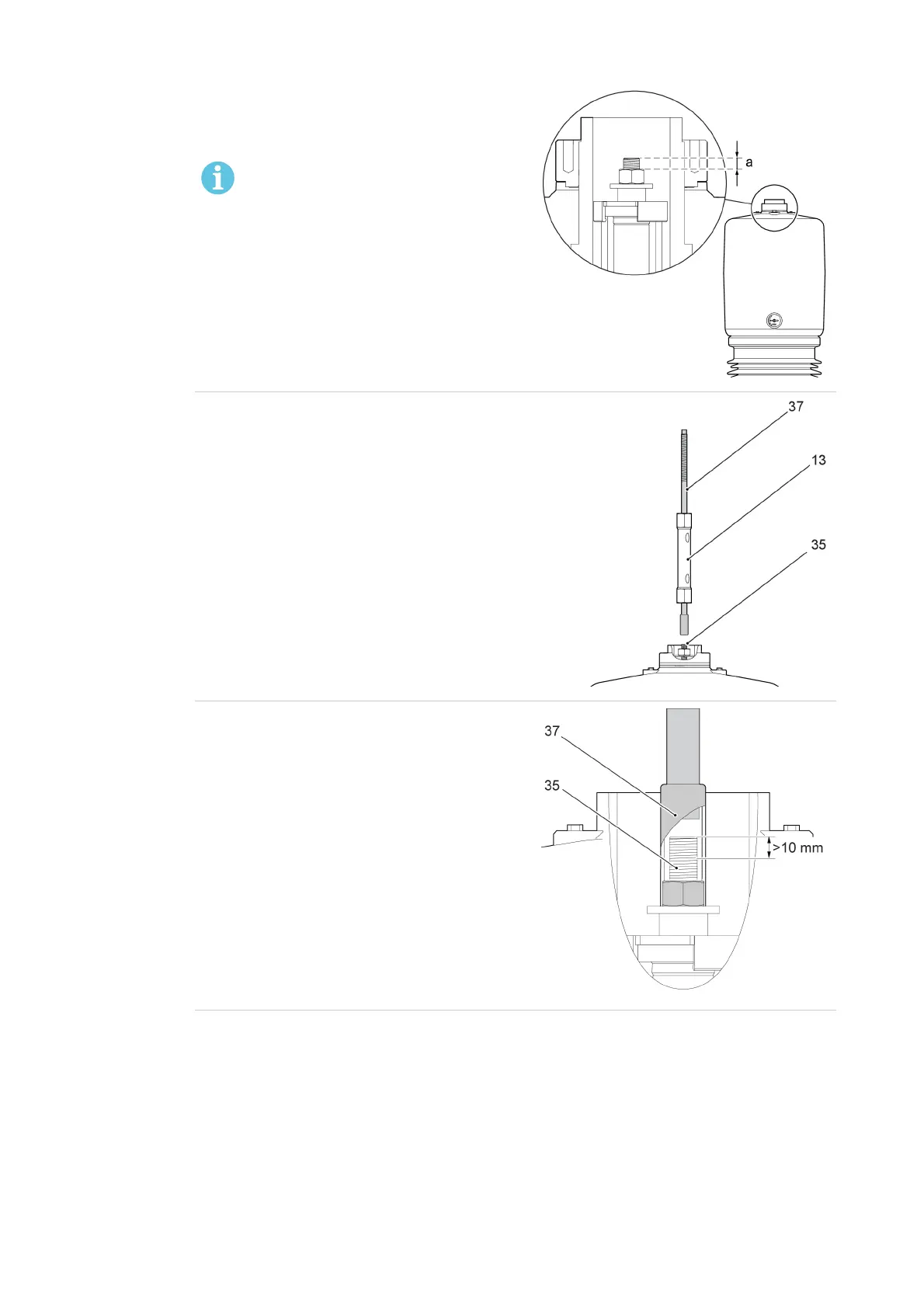

1. Measure the distance (a). Measuring is performed
when the draw rod nut is tightened with torque
10 Nm.
NOTE!
The bushing is delivered with an
information sheet that specifies the
draw-rod extension (b-a). These values
are measured when the bushing is
manufactured, and are unique to every
unit.
G005049
2.
Install the shaft (37) on the draw rod (35), and put
the box-spanner (13) on the shaft (37).
G004873
3.
Make sure that more than 10 mm of the threads
on the upper draw rod (35) are used.
G005066
