Installation and commissioning guide
2750 515-1 EN, REV. 14, 2020-06-26
51

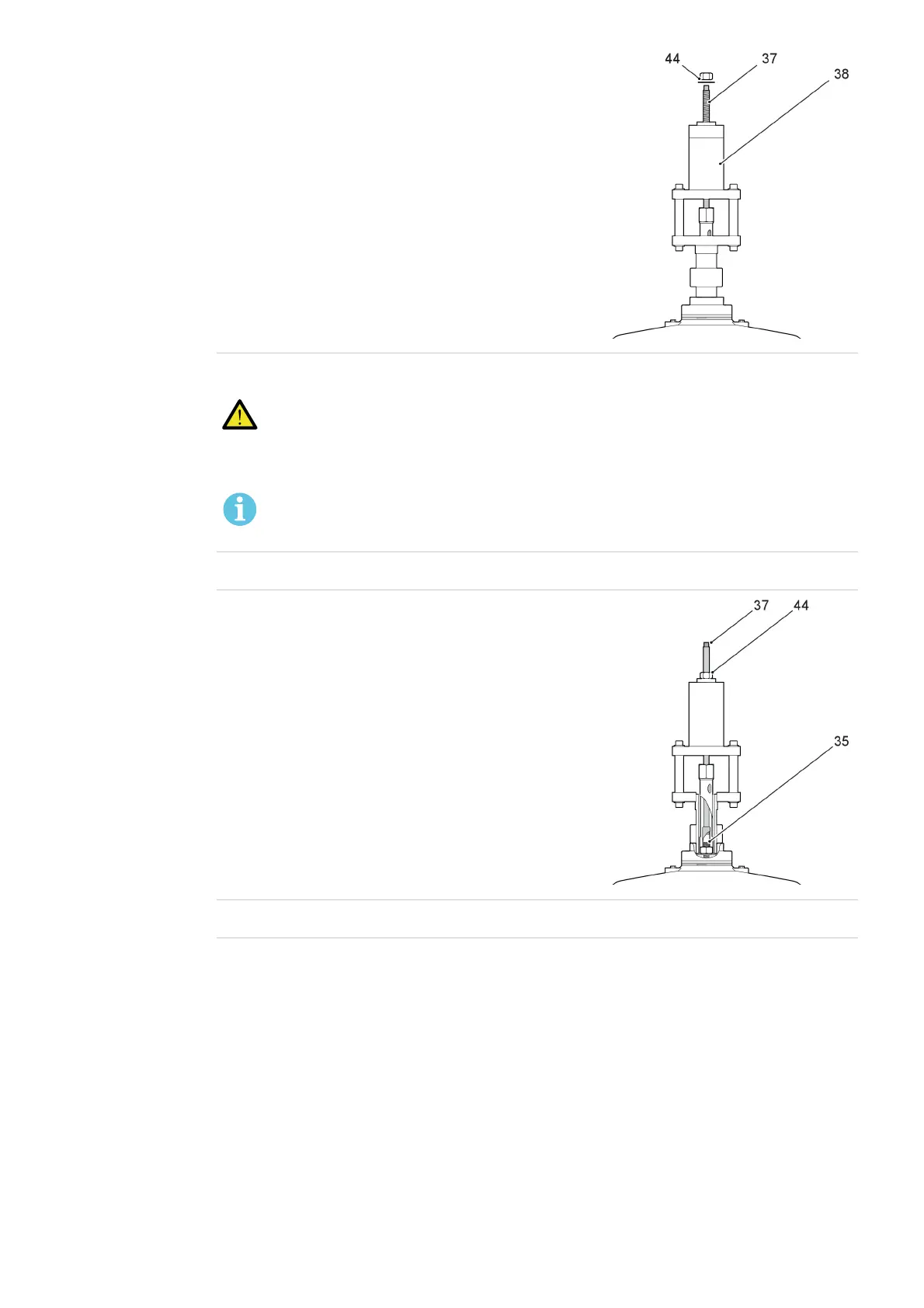

4. Put the hydraulic jack (38) on the shaft (37), and
install the nut (44) but do not tighten it.
G005147
5.
Pull the draw rod with 40 kN.
DANGER!
Apply the hydraulic pressure carefully. Incorrectly used high pressure hydraulics can break
with explosive force.
NOTE!
It is not necessary to compensate for variations in ambient temperature.
6.
Turn the nut on the upper draw rod (35) with the box-spanner, tighten by hand.
7.
Loosen the nut (44).
G005067
8.
Turn the shaft (37) counter clockwise to remove the shaft-socket from the upper draw rod (35).
