Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.9 Installing the cartridge group
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019

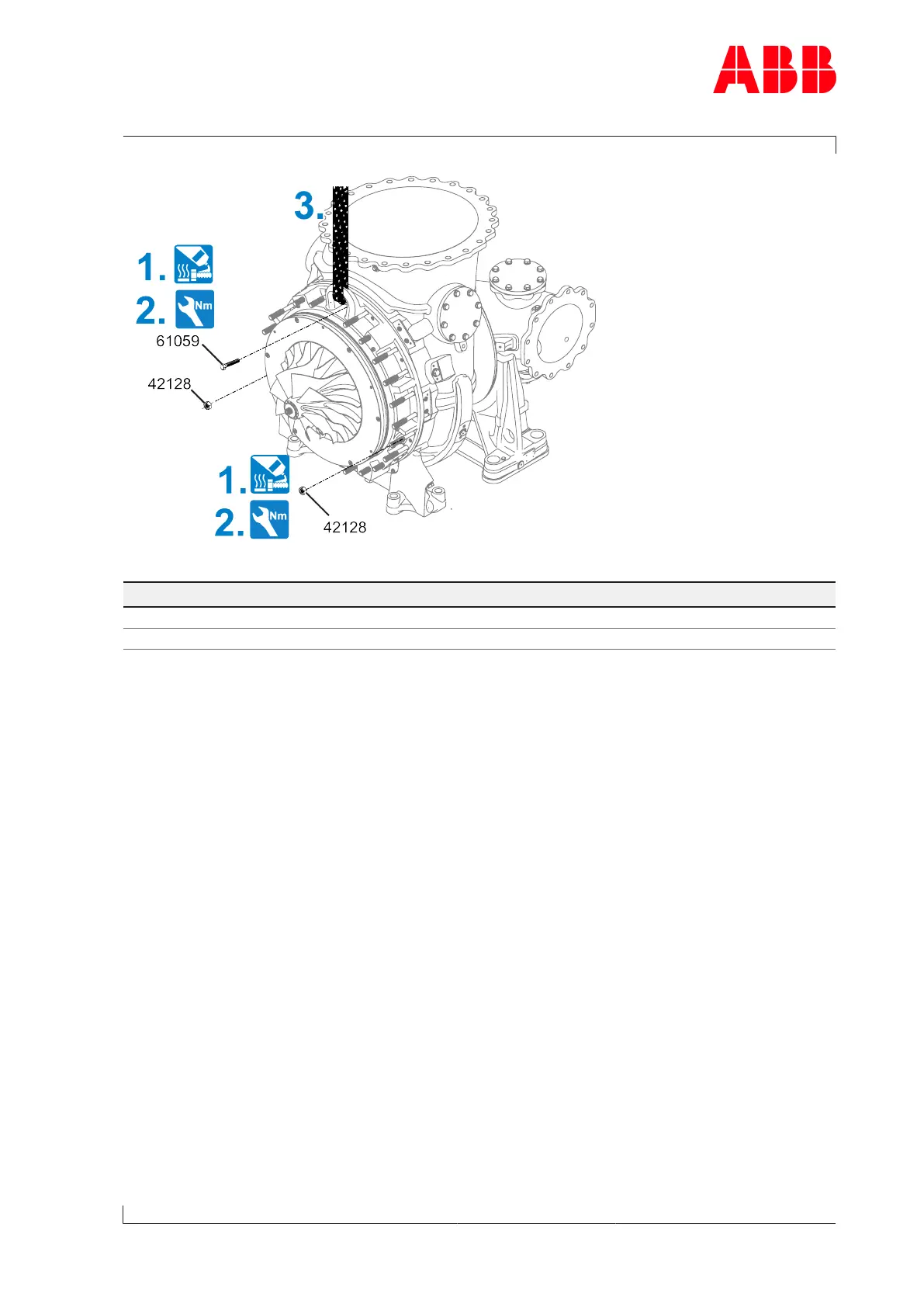

Fig.50: Installing the cartridge group 2
Product Size Tightening torque [Nm]
A170-M M22 415
A175-M M24 490
Table38: Tightening torque (61059 / 42128)
1. Coat thread of screw (61059) and two bolts for the nuts (42128) with high-temperature
grease.
2. Secure cartridge group with screw (61059) and nuts (42128).
3. Remove the lifting gear.
Page 79 / 114
