ABB HT595584 - Fig. 29: Removing the Air Suction Branch

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.3 Removing the air inlets
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019

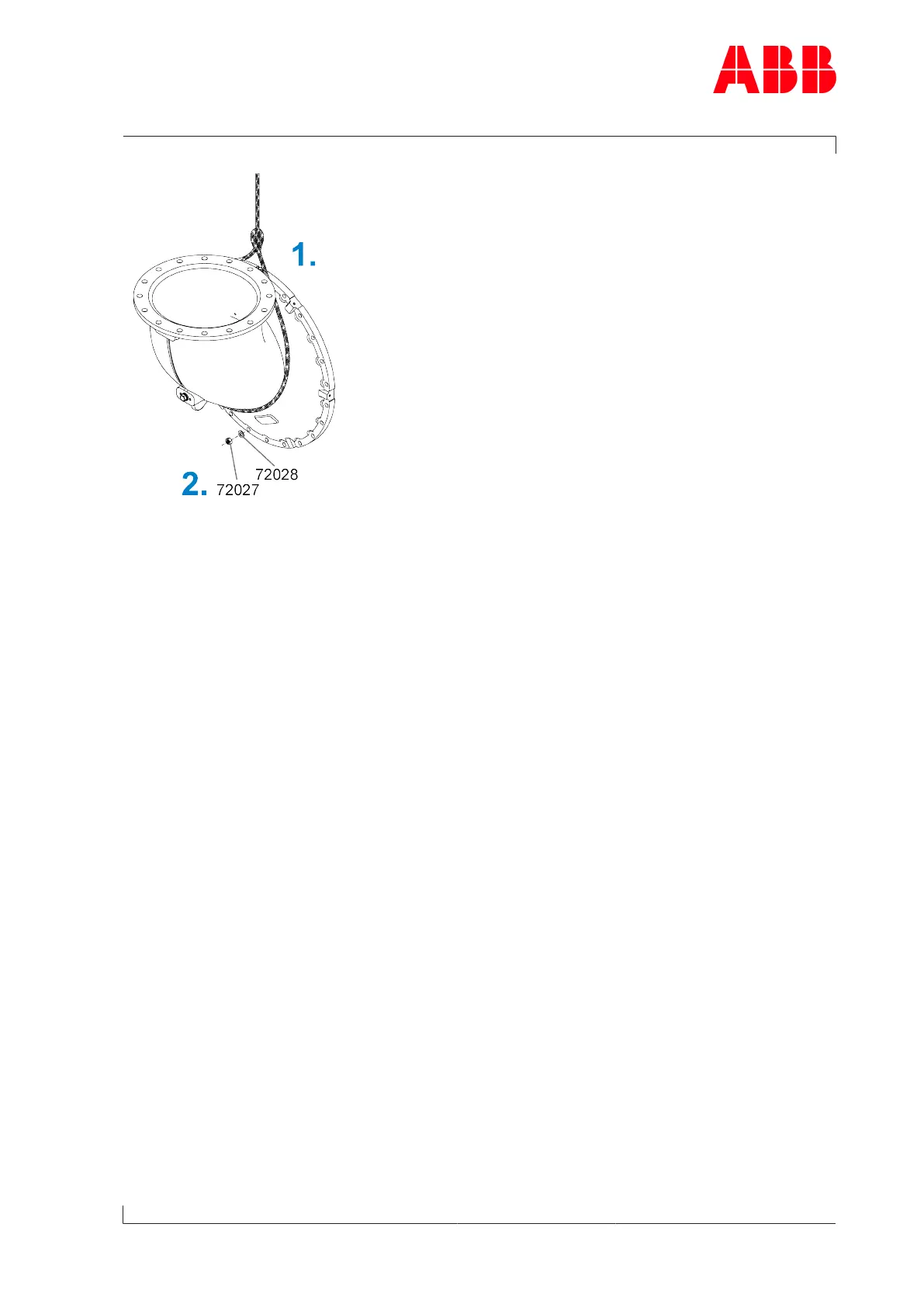

Fig.29: Removing the air suction branch
1. Loop lifting gear around air suction branch.
2. Loosen and remove the nuts (72027) with washers (72028).
u Remove and put down the air suction branch.
