8.7 Removing the nozzle ring
Removing turbine diffuser

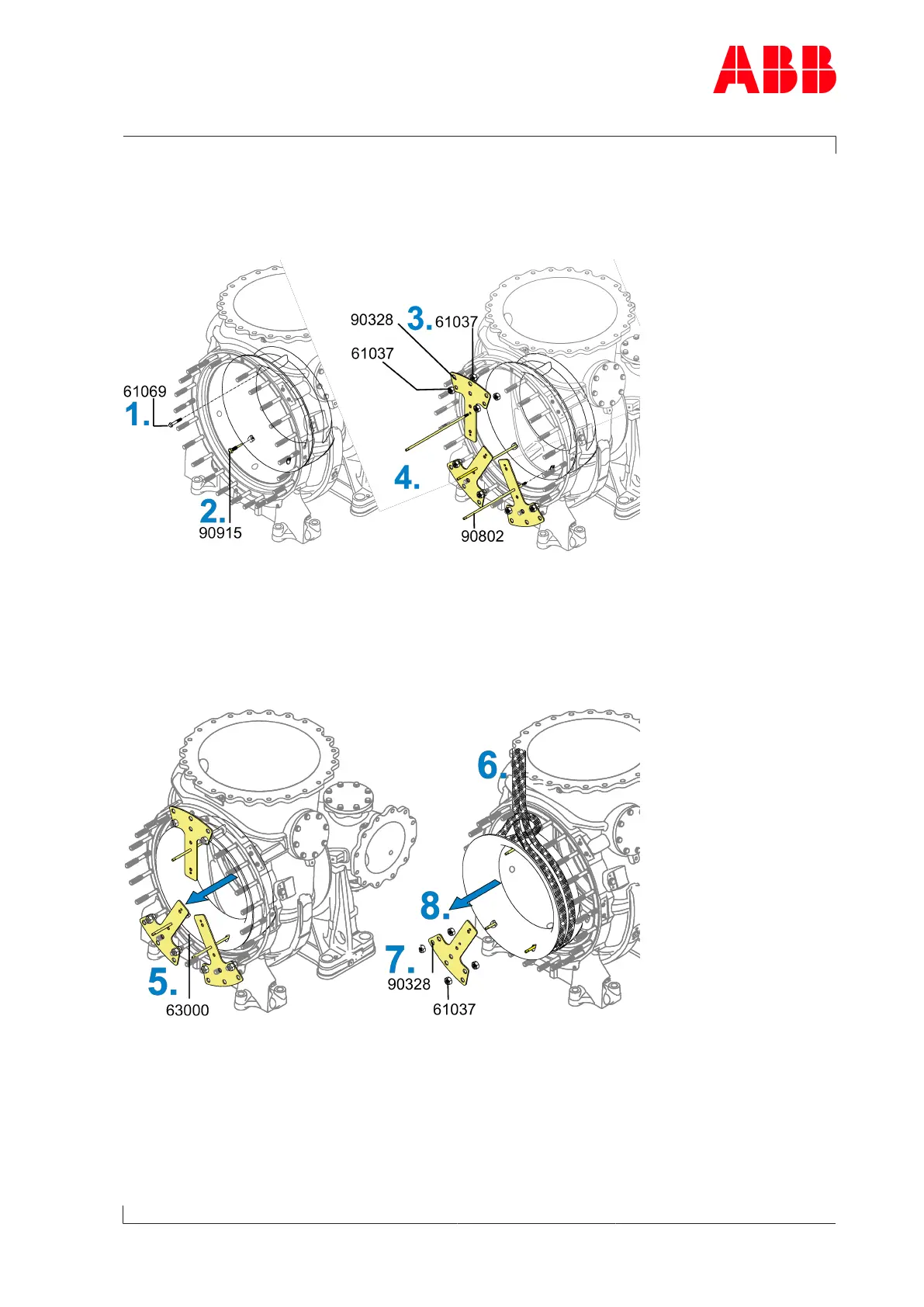

Fig.38: Removing turbine diffuser 1
1. Remove screws (61069).
2. Using press-off screws (90915), press off turbine diffuser.
3. Fit guide plates (90328) with nuts (61037).
4. Screw in guide stud (90802).
Fig.39: Removing turbine diffuser 2
5. Pull turbine diffuser (63000) out as far as it will go at guide plates.
6. Loop around turbine diffuser and secure to lifting gear.
7. Remove nuts (61037) and guide plates (90328).
8. Completely pull out and put down turbine diffuser.
