ABB HT595584 - Fig. 62: Installing the Nozzle Ring at the Turbine End; Table 50: Tightening Torque (56014)

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.14 Removing and installing turbine-
end nozzle ring
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019
Installing the nozzle ring

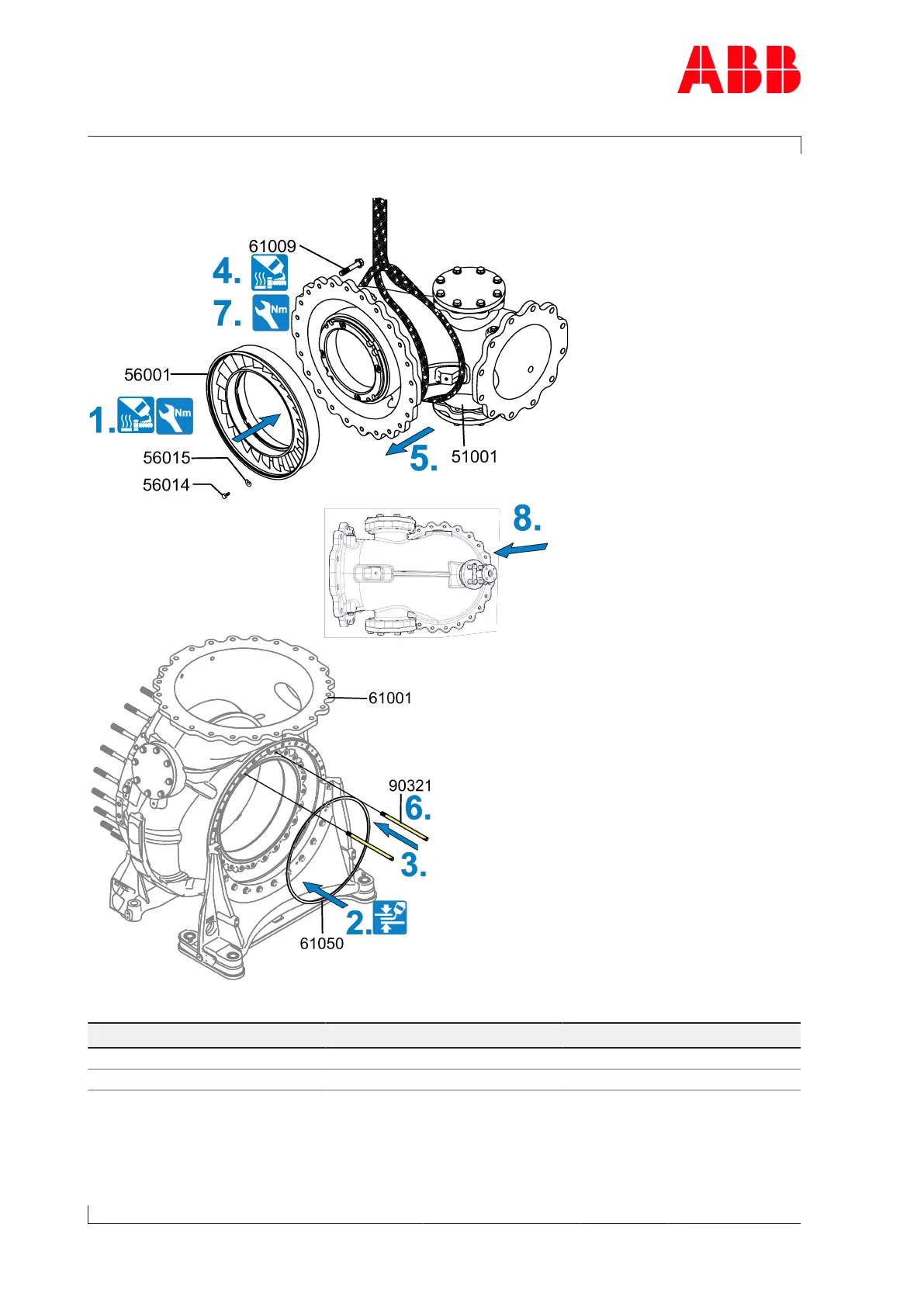

Fig.62: Installing the nozzle ring at the turbine end
Product Size Tightening torque [Nm]
A170-M M10 50
A175-M M10 50
Table50: Tightening torque (56014)
