ABB HT595584 - Fig. 32: Transporting and Turning Wall Insert; Fig. 33: Removing the Diffuser

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019
Transporting and turning wall insert

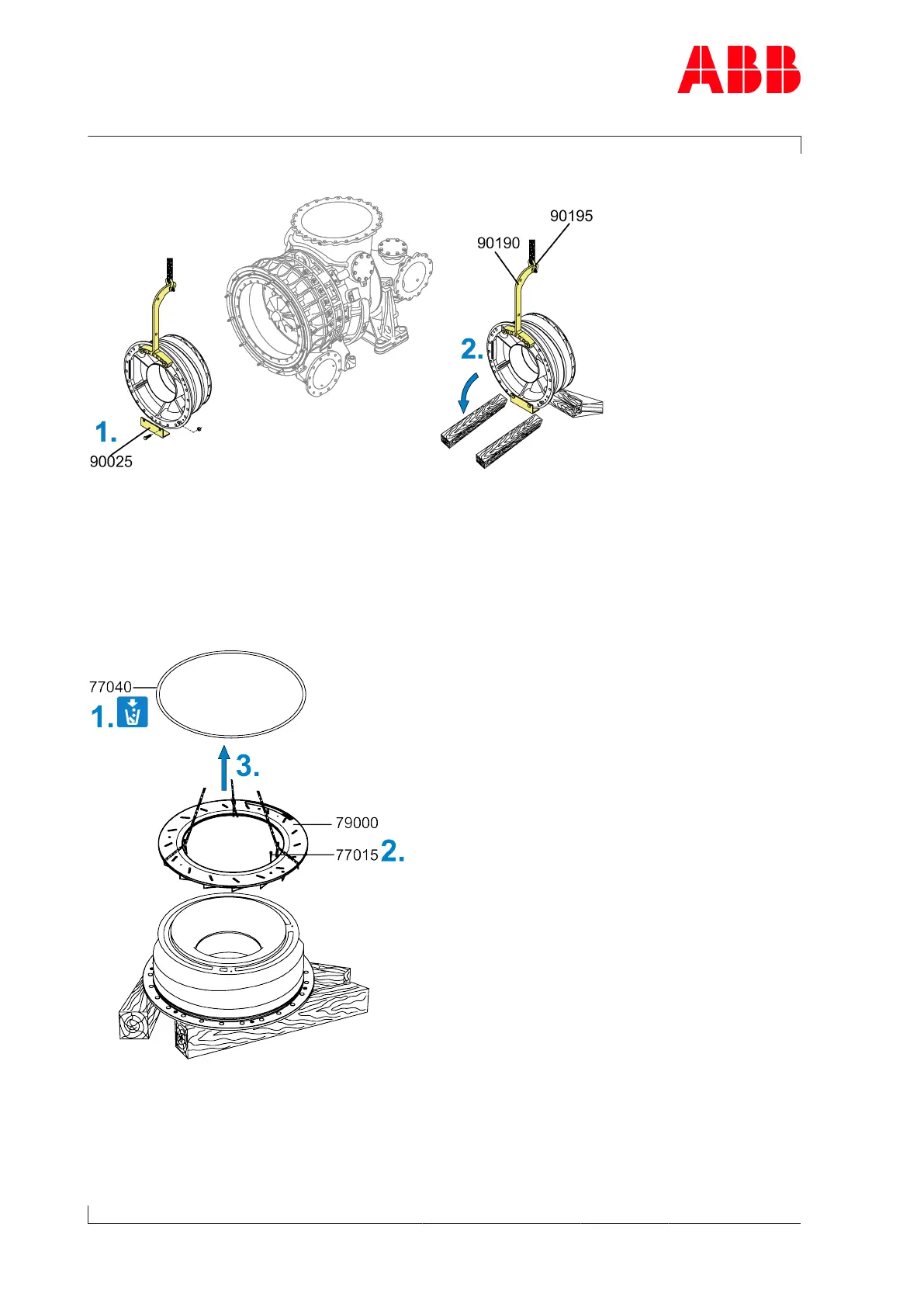

Fig.32: Transporting and turning wall insert
1. Fit support angle (90025) with bolts and nuts.
2. Carefully turn wall insert over support angle (90025) and place on supports.
u Place wall insert such that lifting device (90190/90195) can be removed.
Removing the diffuser
Fig.33: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop lifting gear around diffuser (79000) and remove diffuser.
Page 64 / 114
