6.3 Cleaning the slotted diffuser
u Remove the diffuser (see Removing the compressor casing →63).

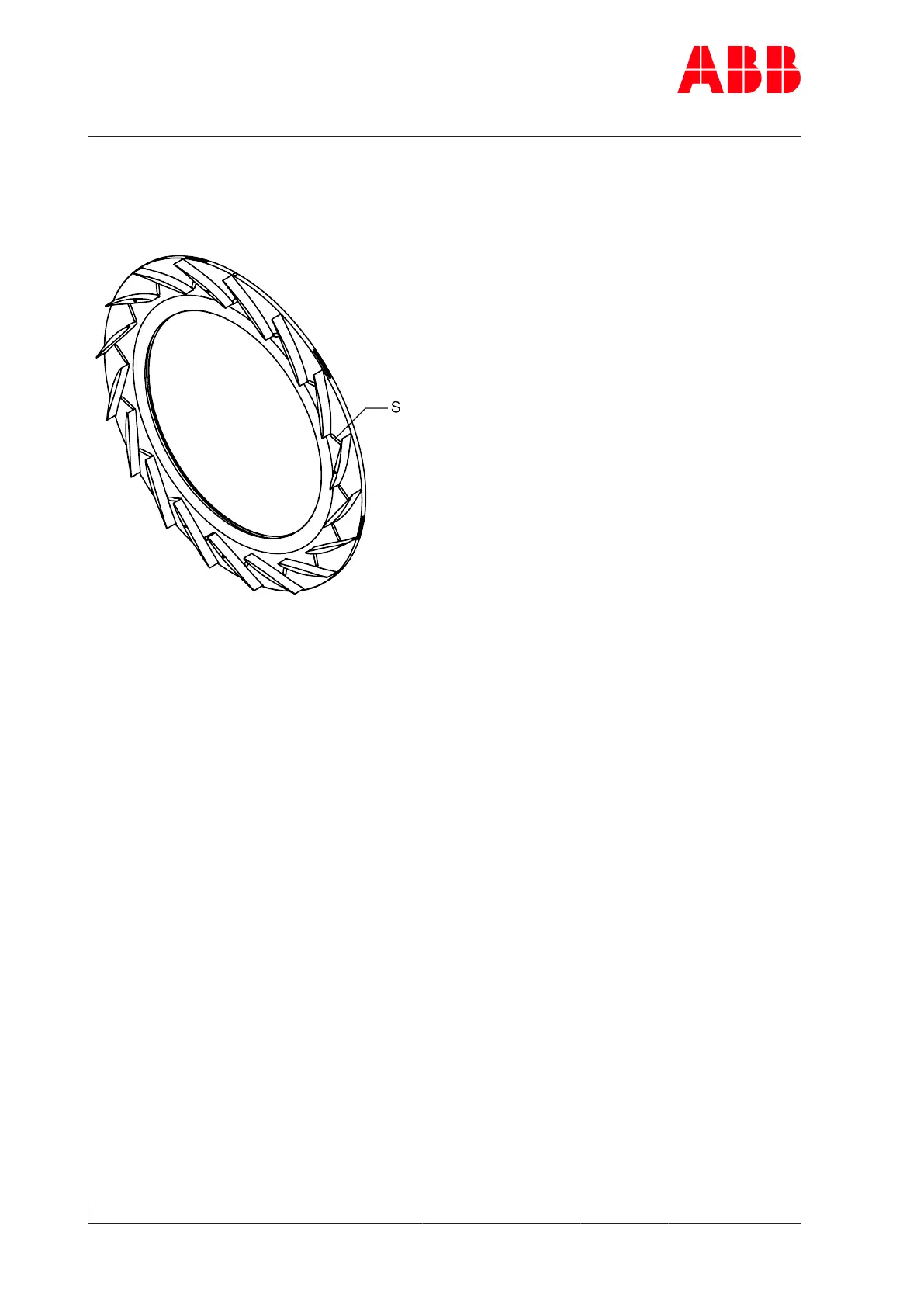

Fig.22: Cleaning the slotted diffuser
u Clean the diffuser slots (S).
When cleaning, please note that this should only take place using lightly pressurized air, a
brush and a moist cleaning cloth.
u Have any heavily contaminated or damaged diffusers replaced by an ABB Turbocharging
Service Station.
