2.3 Installing the turbocharger
WARNING
Risk of tipping
If the turbocharger is not sufficiently supported or not supported at all dur-
ing removal and installation, it may tip over and cause severe injury to per-
sonnel or accidents resulting in fatalities.
u Support the turbocharger at a suitable location.
u Secure with lifting gear wherever possible.
Wear safety helmet.

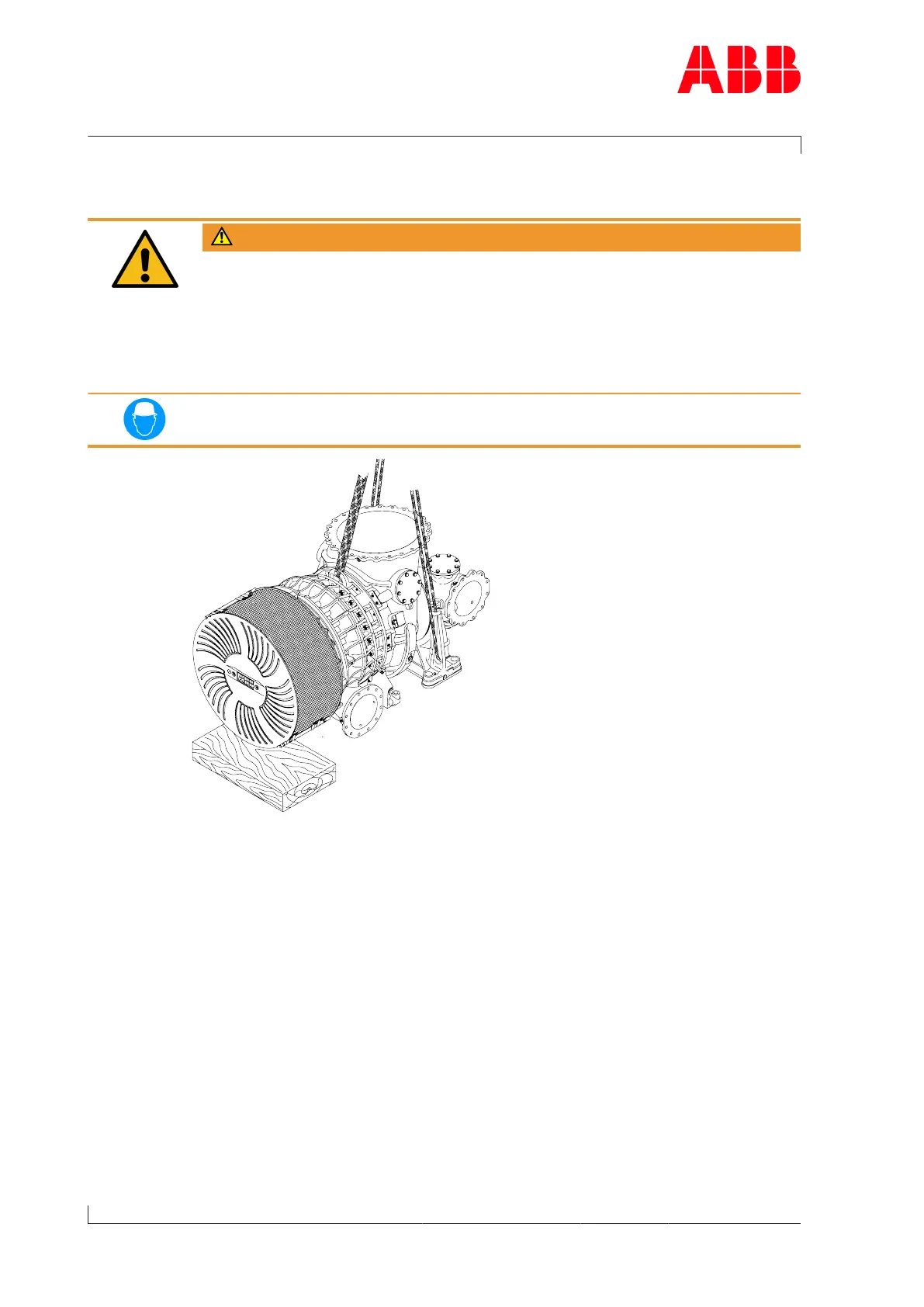

Fig.9: Turbocharger suspension points
u If present: Remove insulation segment on the bearing casing.
u Attach lifting gear to the suspension lug of the bearing casing and the turbine-end foot.
u Remove the covers from the oil connections.
u Align turbocharger and place on bracket.
