1.6 Locations of the rating plates

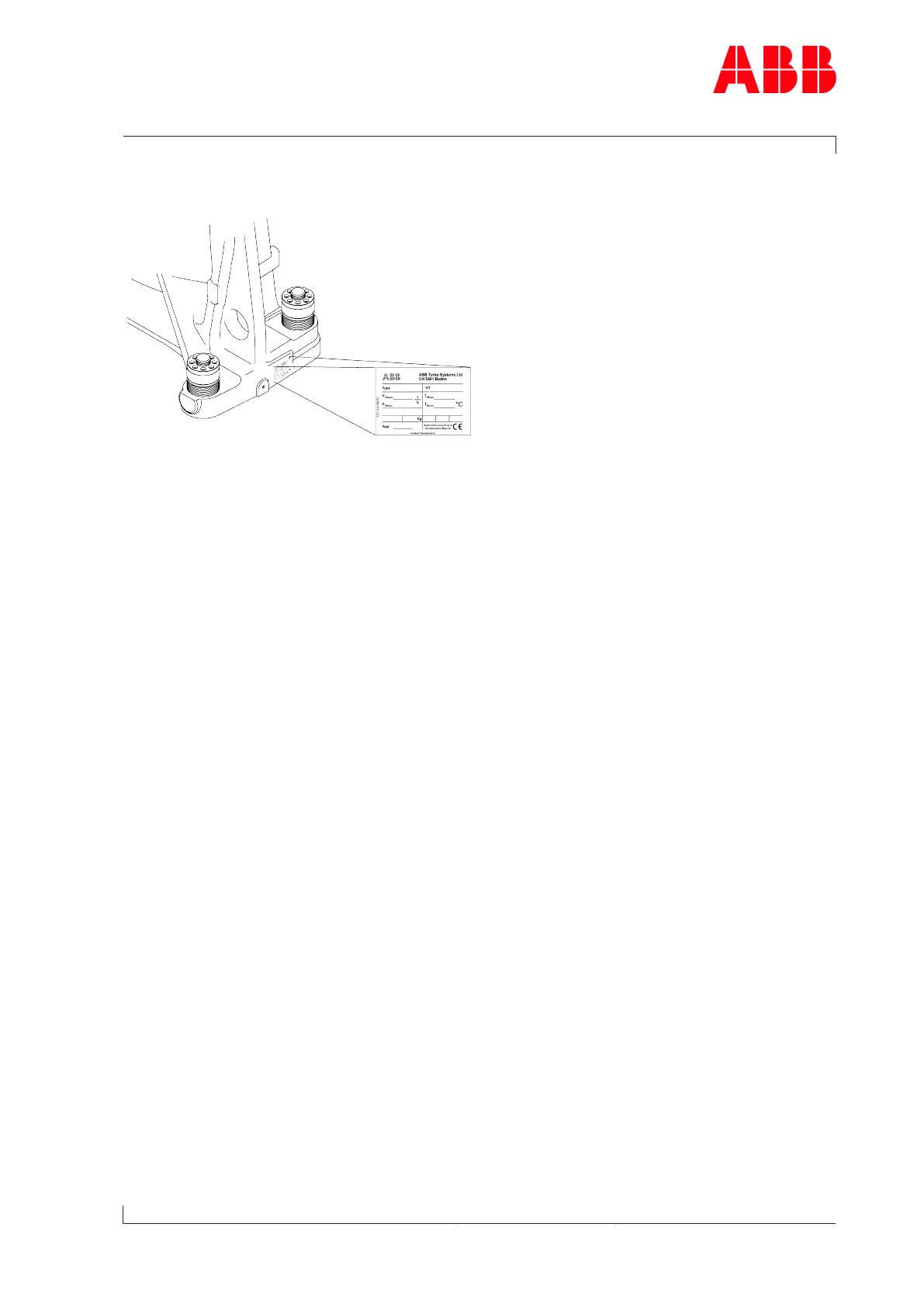

Fig.4: Locations of the rating plates
One rating plate each is attached on the left and the right side of the foot of the turbochar-
ger.
On turbochargers with insulation from ABB Turbo Systems, at least one additional rating
plate is attached to the insulation of the gas outlet casing.
