ABB HT595584 - Fig. 11: Compressor-End Foot; Fig. 12: Turbine-End Foot; Table 3: Foot Screws, Dimension and Strength Class; Table 4: Foot Screws, Dimension CE

Operation Manual / 4 Product description / A100-M axial
2 Removal and installation / 2.3 Installing the turbocharger
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019
Compressor-end (CE) foot

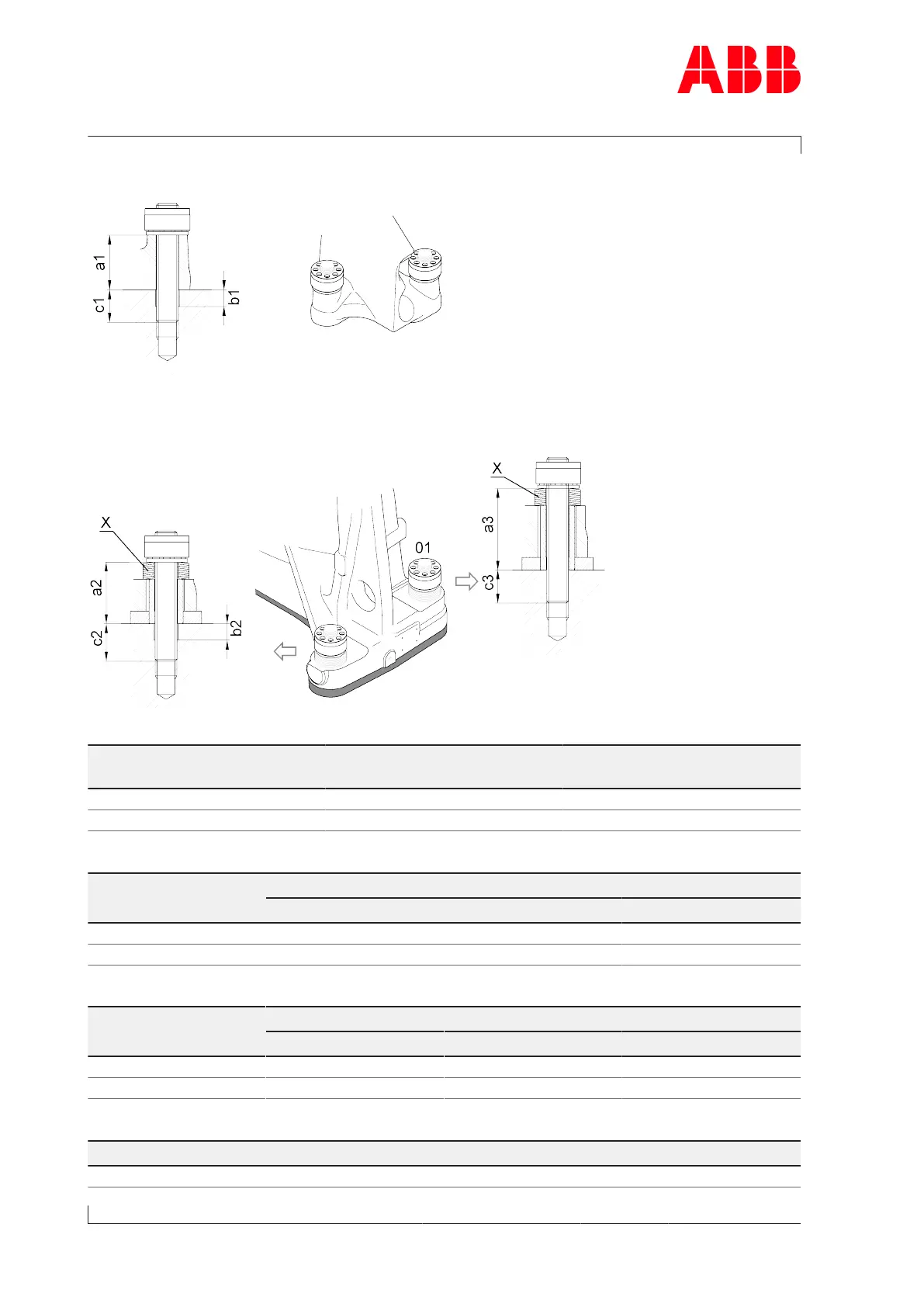

Fig.11: Compressor-end foot
Turbine-end (TE) foot
Fig.12: Turbine-end foot
Product Foot screw dimension
[mm]
Strength class
A170-M M30 10.9
A175-M M36 10.9
Table3: Foot screws, dimension and strength class
Product Dimension CE [mm]
a1 b1 c1
A170-M 82 ø32x23 68
A175-M 95 ø38x31 85
Table4: Foot screws, dimension CE
Product Dimension TE [mm]
a2 / a3 b2 c2 / c3
A170-M 94 / 124 ø32x11 56 / 45
A175-M 113 / 148 ø38x12 66 / 54
Table5: Foot screws, dimension TE
Product Number of cup springs X
A170-M 9
