ABB HT595584 - Fig. 34: Removing the Compressor Casing

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2019 ABB. All rights reserved. HZTL4033_EN Rev.D December 2019
Removing the compressor casing

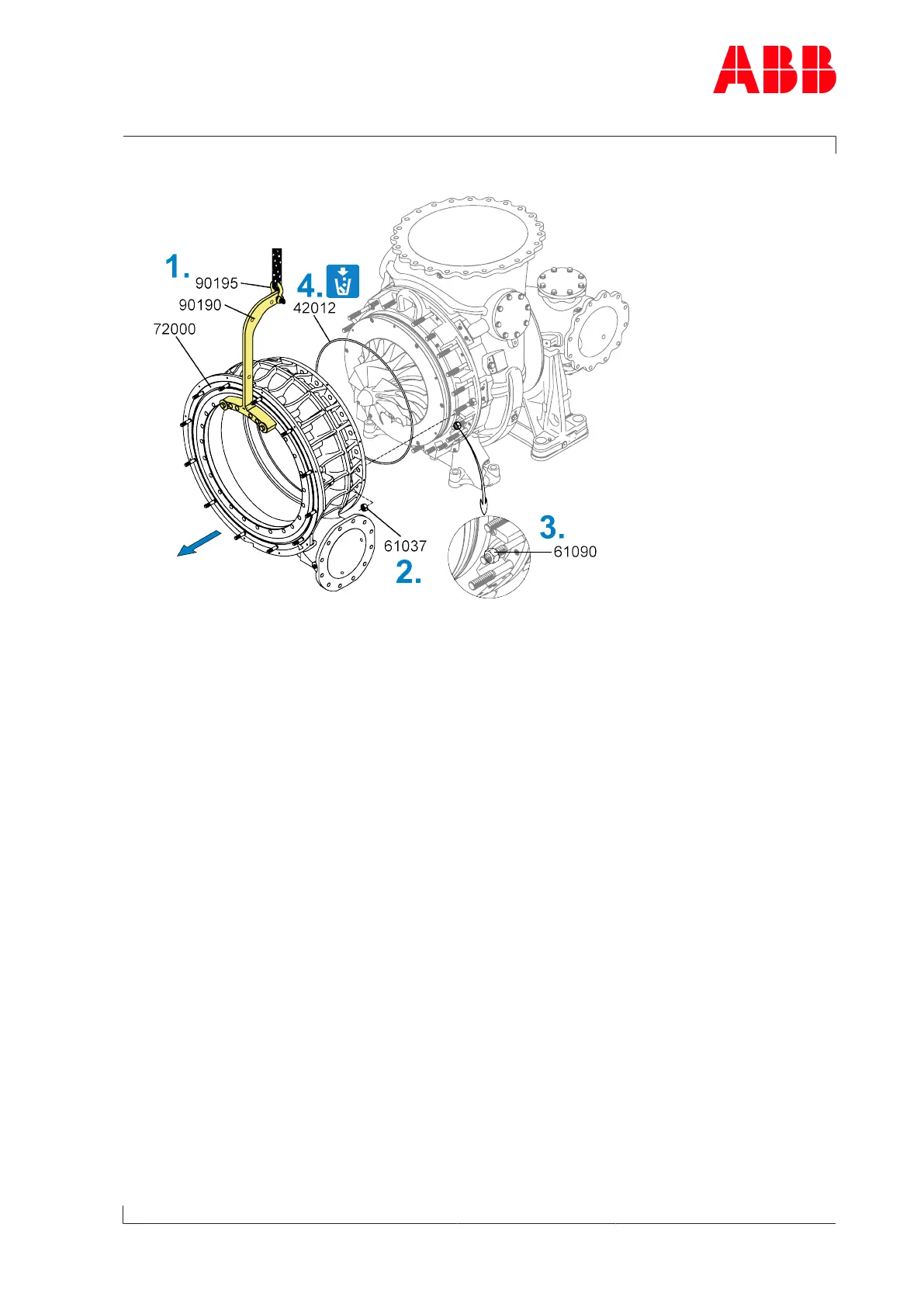

Fig.34: Removing the compressor casing
1. Using shackle (90195) and lifting gear, fasten lifting device (90190) to compressor casing
(72000) and secure to crane.
2. Loosen and remove nuts (61037).
3. Use press-off nuts (61090) to fully press off and remove compressor casing (72000).
4. Remove and dispose of the O-ring (42012).
Page 65 / 114
