10 Dismantling and fitting with removed air inlet and gas outlet /
10.13 Installing the compressor casing
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
Installing the compressor casing

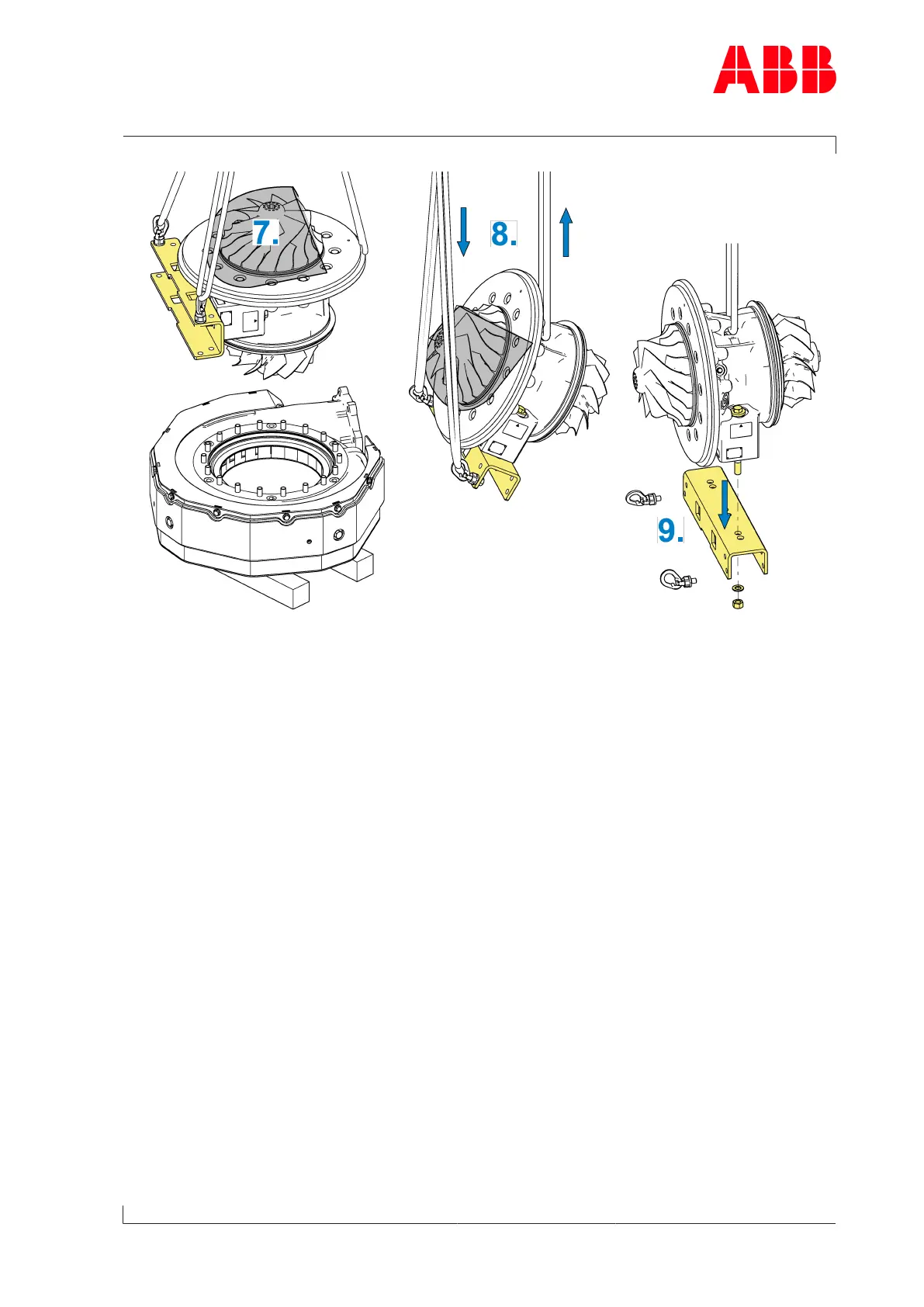

Fig.71: Installing the compressor casing
Product Size Tightening torque [Nm]
A150 M16 275
A155 M18 370
Table50: Tightening torque (72011)
1. Fit new O-ring(42012).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Install the compressor casing(72000).
4. Install the fastening strips(72012) with screws(72011). Observe the tightening torque.
Page 119 / 194
