10 Dismantling and fitting, cartridge concept / 10.2 Removing the
compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
10.2 Removing the compressor casing
u Mark the casing position for assembly.

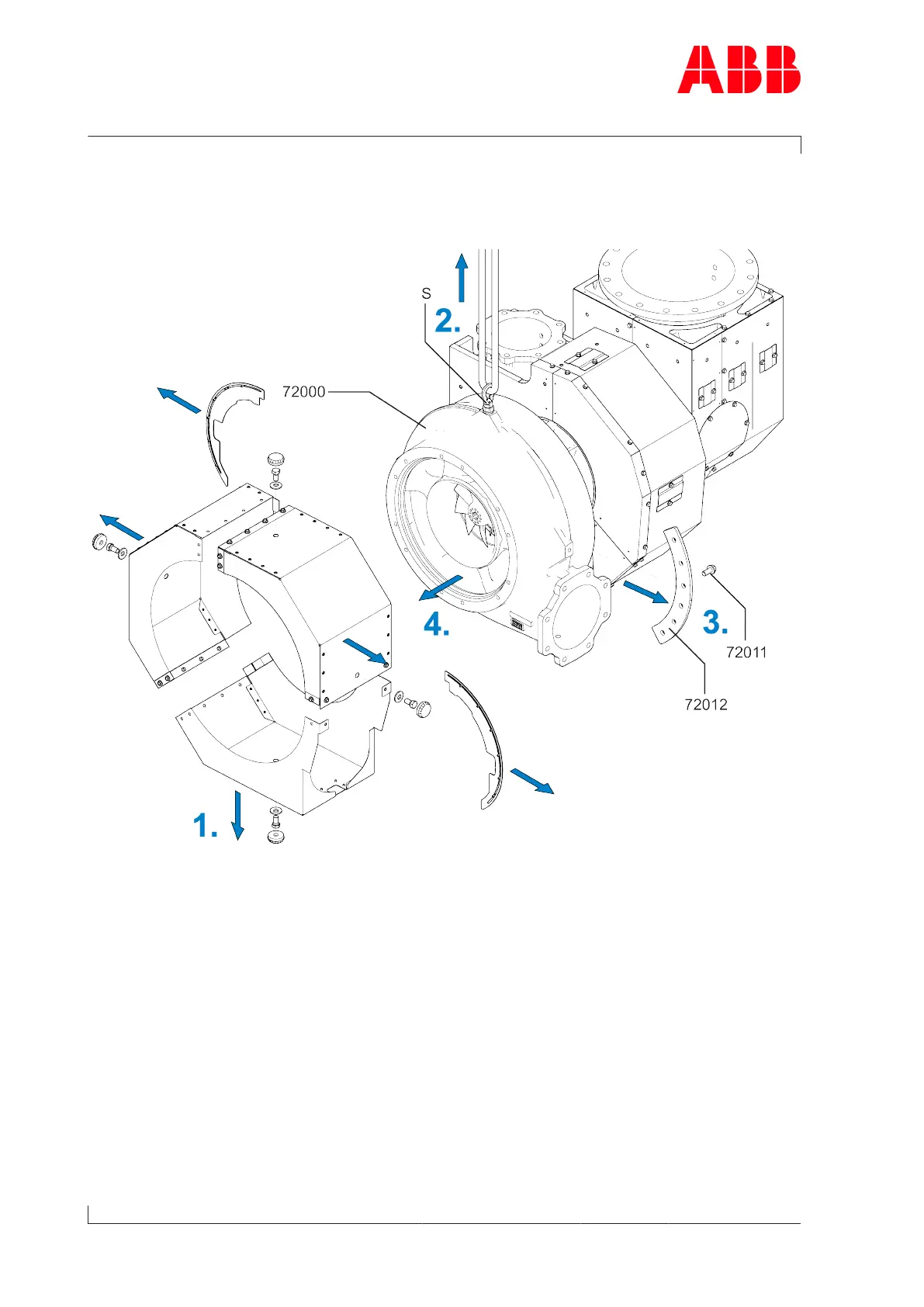

Fig.79: Removing the compressor casing
1. Remove the compressor casing insulation.
2. Fit swivel lifting eye(S) to the compressor casing(72000). Secure lifting gear to the
swivel lifting eye.
3. Loosen screws(72011) and remove together with fastening strips(72012).
4. Remove the compressor casing(72000).
