A155-M Uncoupled filter silencer

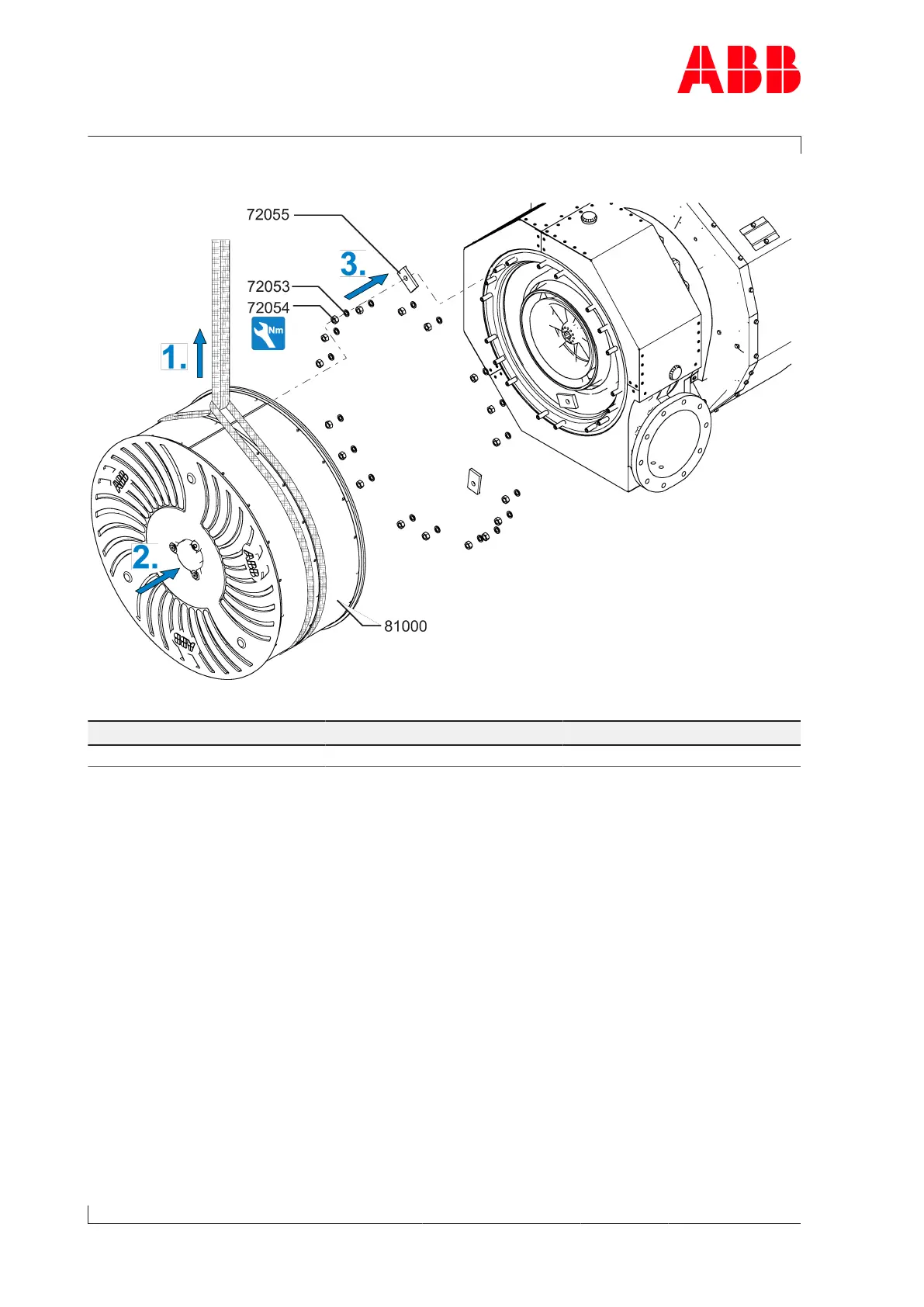

Fig.98: Installing the uncoupled filter silencer
Product Size Tightening torque [Nm]
A155 M16 275
Table63: Tightening torque (72054)
1. Secure lifting gear to filter silencer(81000).
2. Install the filter silencer(81000).
3. Fit the hexagon nuts(72054) together with Verbus Ripp® washers(72053) and three new
safety plates(72055) (uniformly at 120° to one another). Observe the tightening torque.
