2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for transporting the turbocharger. The
weight specified below applies to the heaviest variant possible. Depending on the specifica-
tion, the weight specified on the rating plate may be lower than the standard value specified
here.

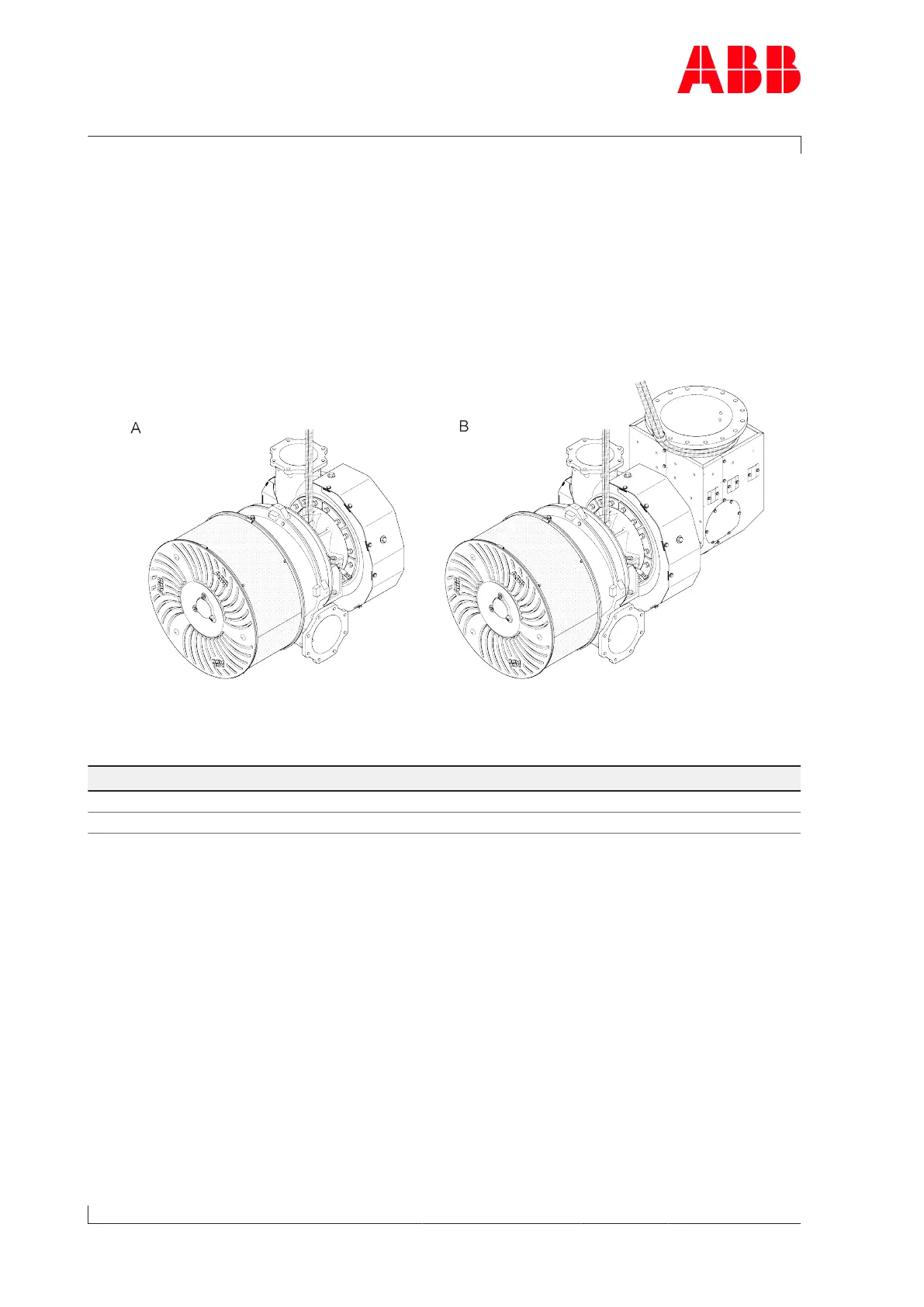

Fig.5: Suspension of complete turbocharger unit
A Complete turbocharger unit without gas outlet casing
B Complete turbocharger unit with gas outlet casing
Product Weight of complete turbocharger unit [kg]
A150-M 1200
A155-M 1800
Table2: Weight of complete turbocharger unit
