Removing the cartridge group

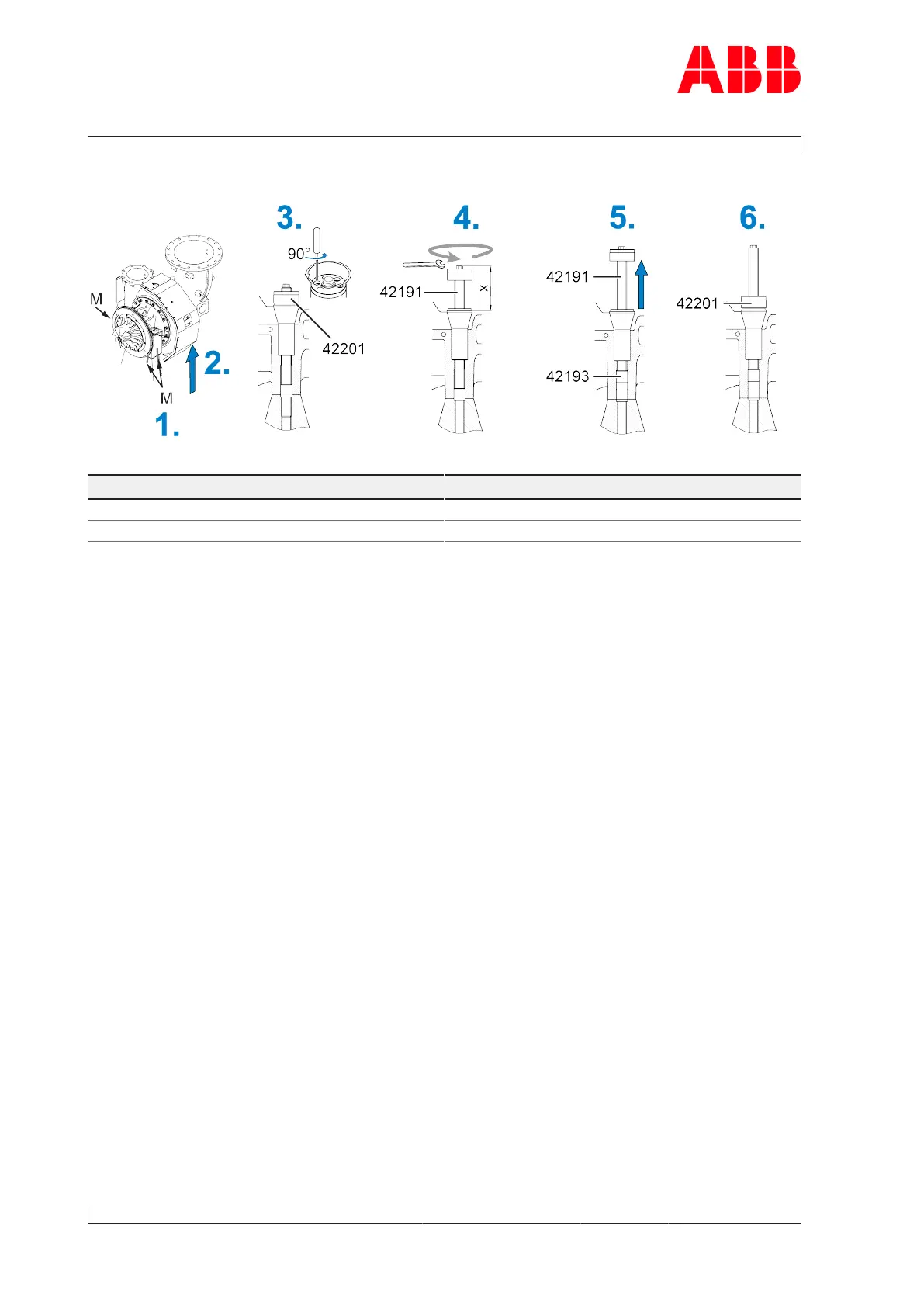

Fig.84: Removing cartridge group1
Product Value X [mm]
A150-M 112 ±2 mm
A155-M 144 ±2 mm
Table54: Threaded rod, value X
1. Apply two marking lines(M) to the left and right of the cartridge group and the bracket.
2. Support and fix the turbine casing.
3. Loosen the clamping nut(42201) (see Loosening the clamping nut →12).
4. Screw threaded rod(42191) up to valueX at the hexagon.
5. Lift the centering bush(42193) using the threaded rod(42191) and hold it firmly.
If the centering bush jams:
Remove the clamping nut and rotate the threaded rod upwards using a standard nut.
6. Rotate the clamping nut(42201) downwards until the stop is reached.
