ABB HT600269 - Fig. 61: Lifting the Cartridge Group and Rotating It by 90; Installing the Cartridge Group

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
9 Dismantling and fitting with removed air inlet and gas outlet / 9.12
Installing the cartridge group
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
9.12 Installing the cartridge group

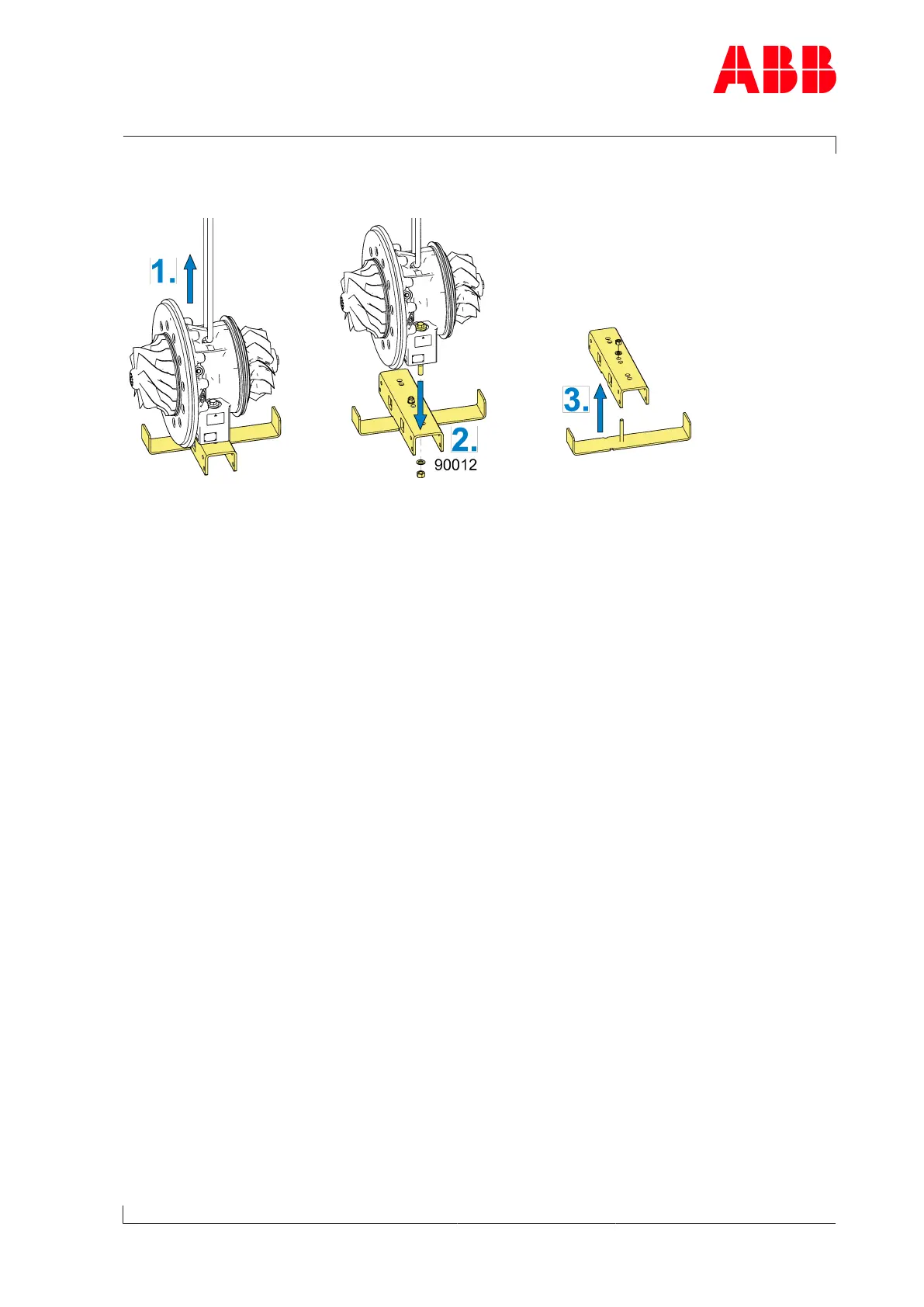

Fig.61: Lifting the cartridge group and rotating it by 90°
1. Fasten lifting gear to cartridge group and lift cartridge group.
2. Remove service support(90012).
3. Dismantle service support.
