1 Introduction / 1.6 Locations of the rating plates
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
1.6 Locations of the rating plates

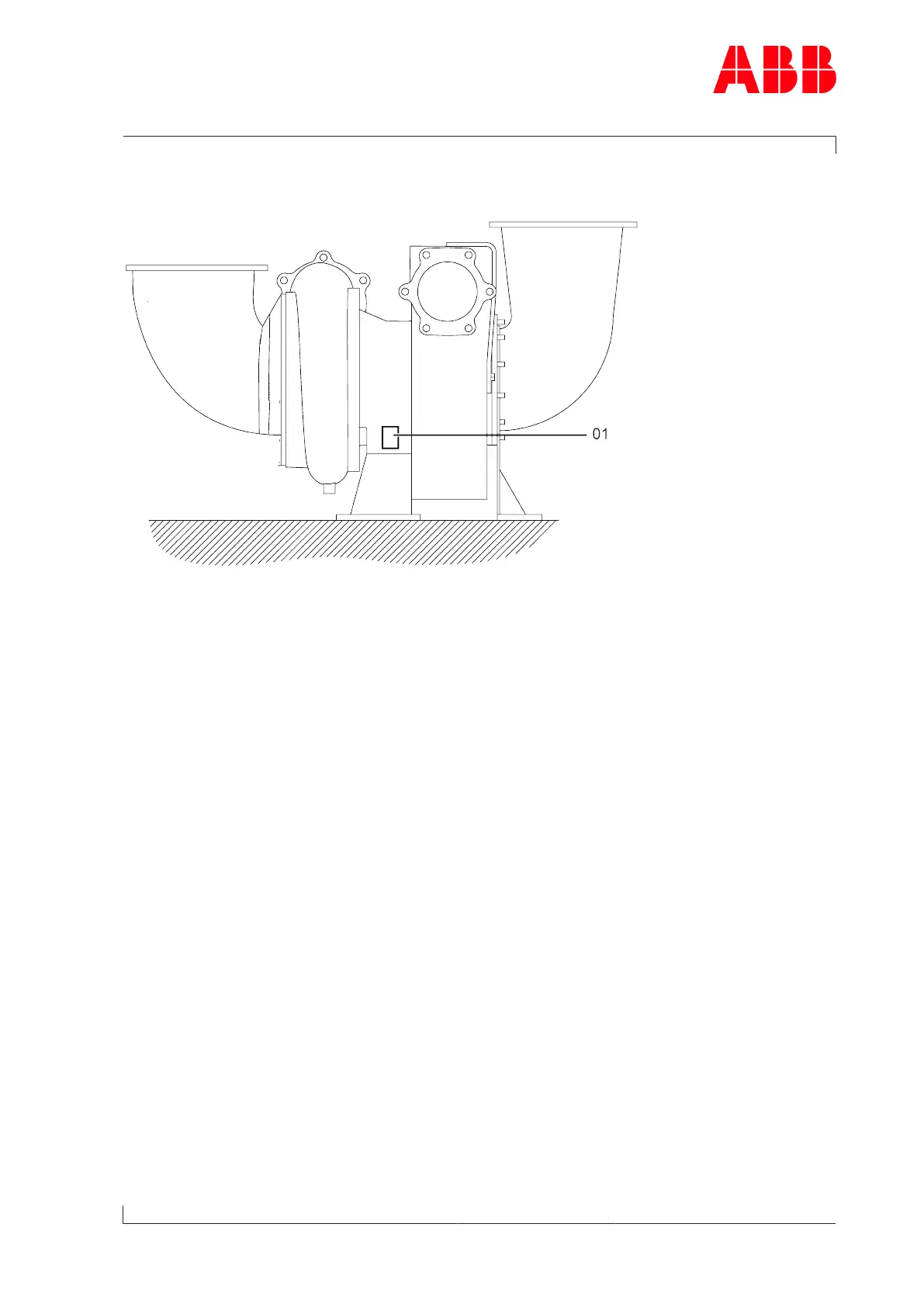

Fig.4: Locations of the rating plates
One rating plate (01) each is attached on the left and the right side of the turbocharger bear-
ing casing.
Page 9 / 171
