ABB HT600269 - Fig. 83: Removing Insulation Sheets; Removing the Cartridge Group

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.3 Removing the
cartridge group
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
10.3 Removing the cartridge group
Removing the insulation

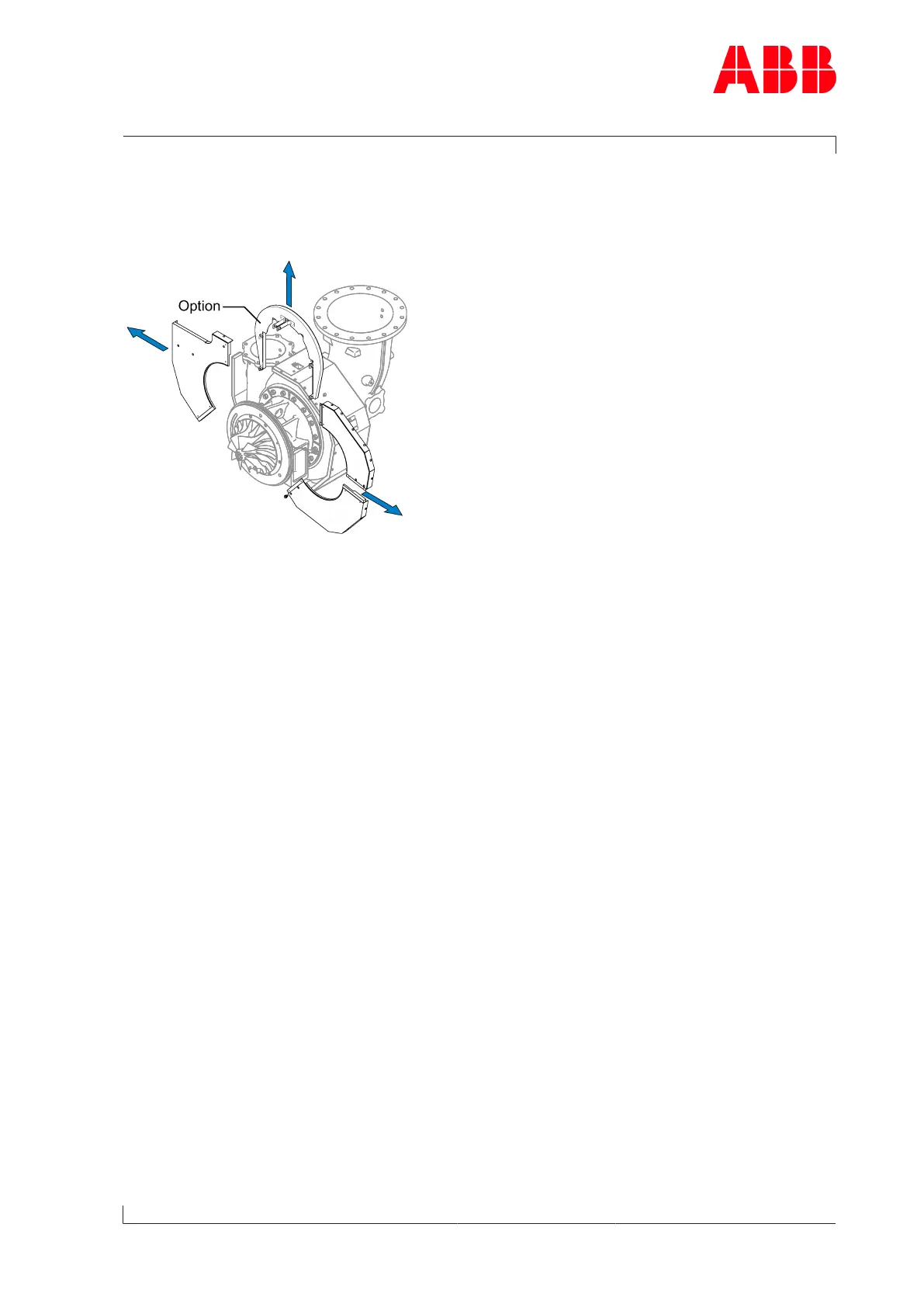

Fig.83: Removing insulation sheets
u Remove insulation sheets.
Page 117 / 171
