11 Dismantling and fitting, special tools for fastening strips / 11.1 Ap-
plication, special tools
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
11.1.1 A155-M Fit fastening strips with extended special tool

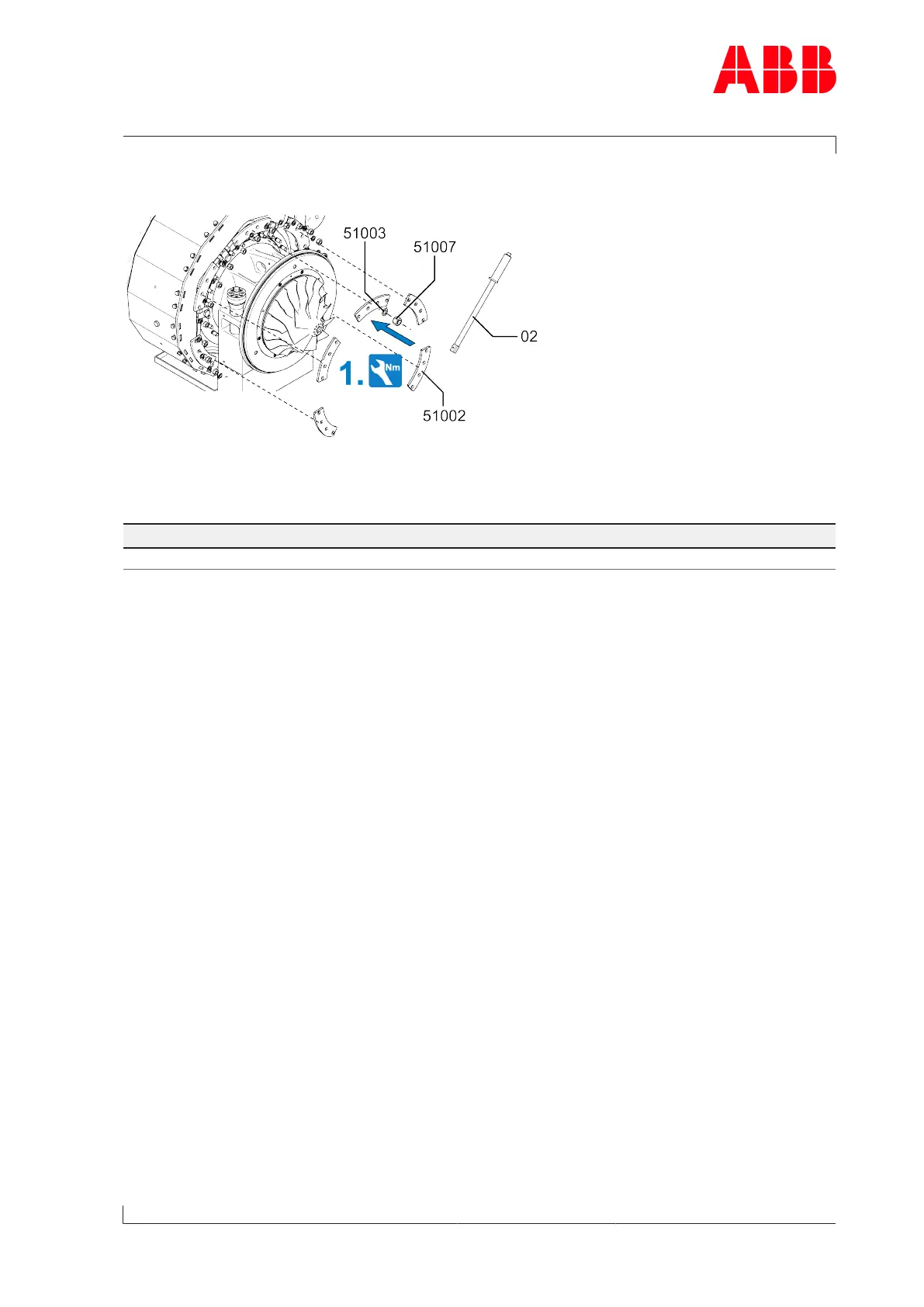

Fig.106: Fitting the cartridge group
1. Fit nuts (51007) of the (upper) fastening strips (51002) shown in the picture and tighten
with the torque spanner(02) without a spanner holder. Observe the tightening torque.
Product Size Tightening torque [Nm]
A155 M16 175
Table68: Tightening torque (51007)
