2.3 Installing the turbocharger
2.3.1 Inserting gaskets
CAUTION
Inserting the gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
u Always use new gaskets and insert them carefully into the slot.

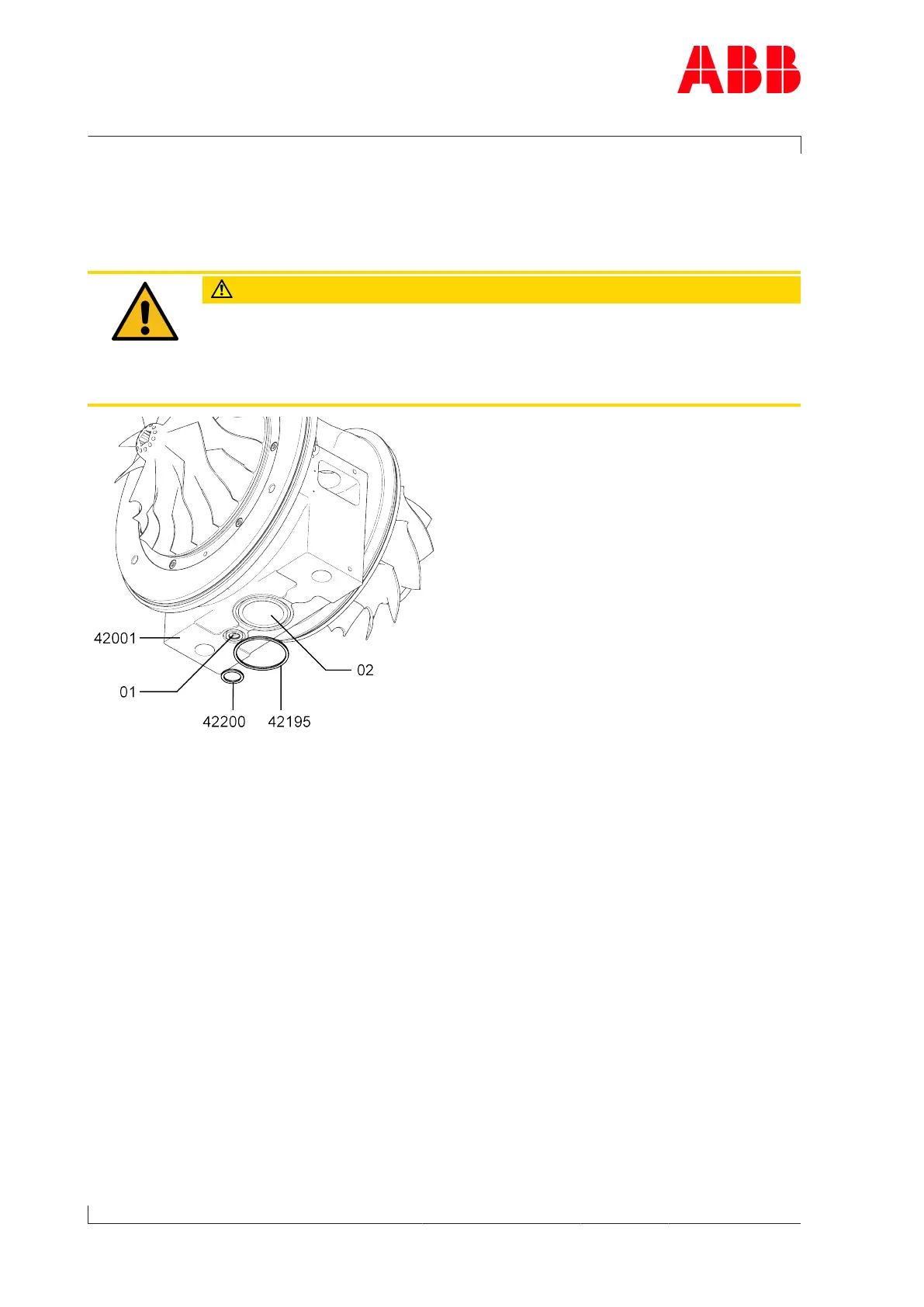

Fig.10: Inserting the gasket
01 Oil supply
02 Oil drain
42200 O-ring
42201 Bearing casing
42202 O-ring
