ABB HT600269 - Fig. 97: Installing the Air Inlets; Installing Air Inlets; Table 62: Tightening Torque (72051)

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.12 Installing air in-
lets
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
10.12 Installing air inlets

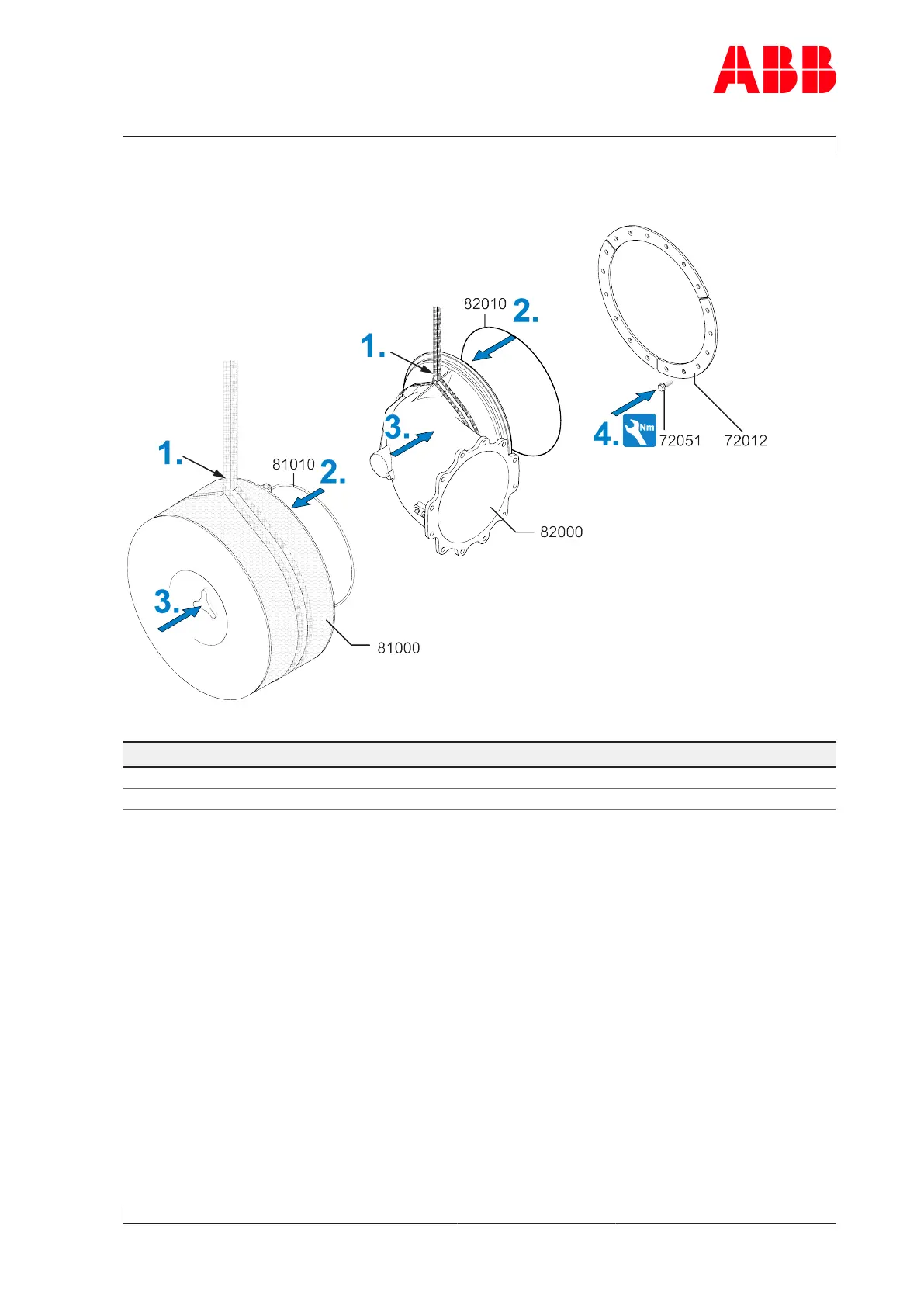

Fig.97: Installing the air inlets
Product Size Tightening torque [Nm]
A150 M16 275
A155 M18 370
Table62: Tightening torque (72051)
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air
suction branch(82000).
3. Install the filter silencer(81000) or air suction branch(82000).
4. Fit the fastening strips(72012) with hexagon-head screws(72051). Observe the tighten-
ing torque.
Page 131 / 171
