ABB HT600269 - Fig. 114: Disassembly of the Connecting Pieces; Fig. 115: Disassembly of the Cleaning Nozzle; Table 70: Dismantling Screw

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
12 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 12.1 Disassembly
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020

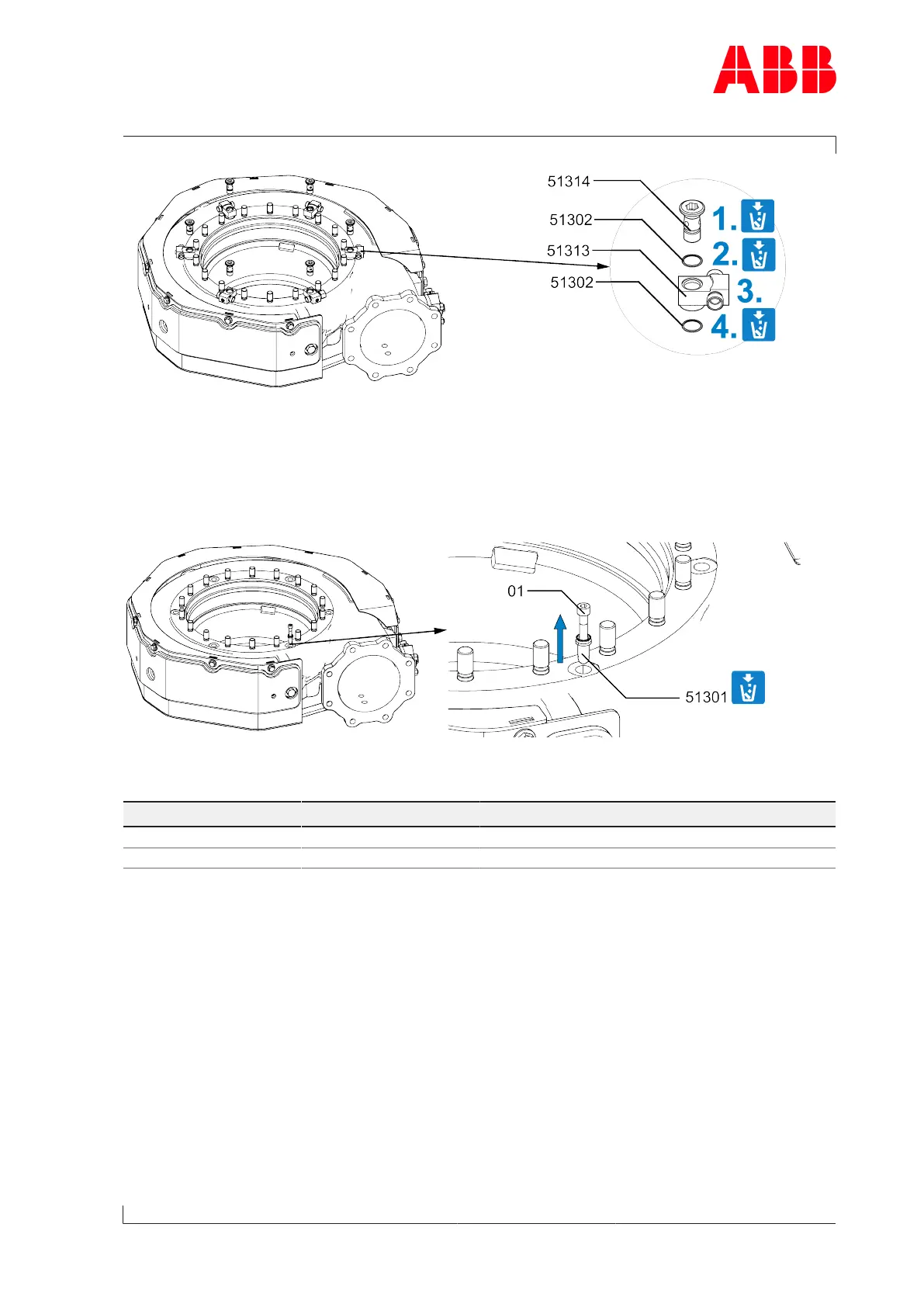

Fig.114: Disassembly of the connecting pieces
1. Unscrew hexagon-head screws (51314) from connecting pieces (51313).
2. Remove gaskets (51302).
3. Remove connecting pieces.
4. Remove gaskets from holes.
Fig.115: Disassembly of the cleaning nozzle
u Remove cleaning nozzles (51301) with screw (01) in accordance with the following table.
Product Thread Length [mm] Quantity
A150-M M8 40 1
A155-M M10 50 1
Table70: Dismantling screw
Page 145 / 171
