9 Dismantling and fitting / 9.15 Installing the compressor casing
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
Installing the compressor casing

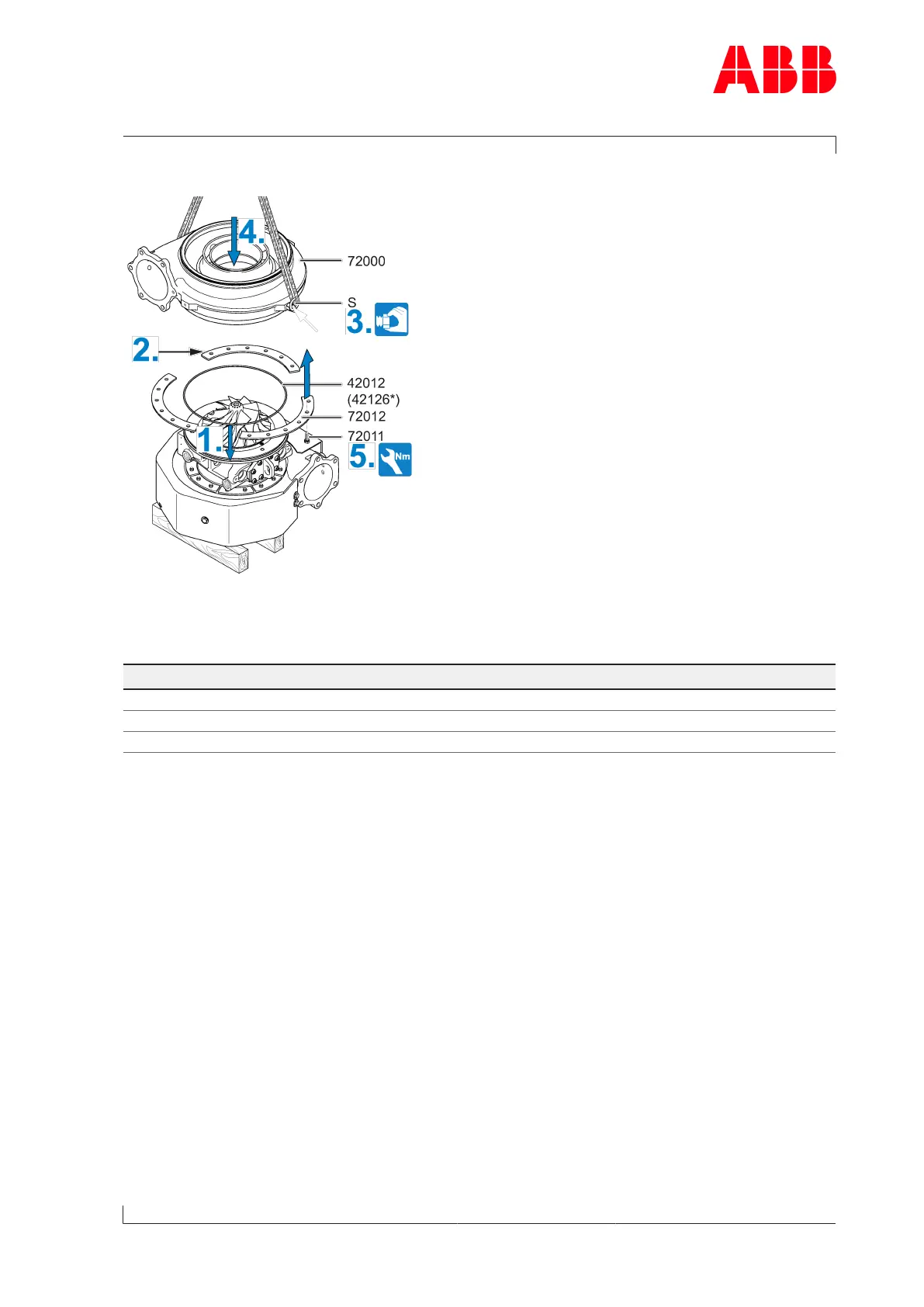

Fig.54: Installing the compressor casing
*) In some installations a special graphite cord sealing (42126) is fitted instead of the O-
ring(42012) (see also chapter Spare parts →110).
Product Size Tightening torque [Nm]
A130 M8 35
A135 M10 70
A140 M12 105
Table41: Tightening torque (72011)
1. Fit a new, high temperature-resisting O-ring(42012, red or green) (see chapter Required
customer spare part set (97070) →110).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes(01) to the compressor casing(72000) and lifting gear.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011).
