ABB HT604133 User Manual

Operation Manual / A130-H.. - A140-H..
9 Dismantling and fitting / 9.3 Removing the air inlets
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
9.3 Removing the air inlets
u Mark the casing position for assembly.

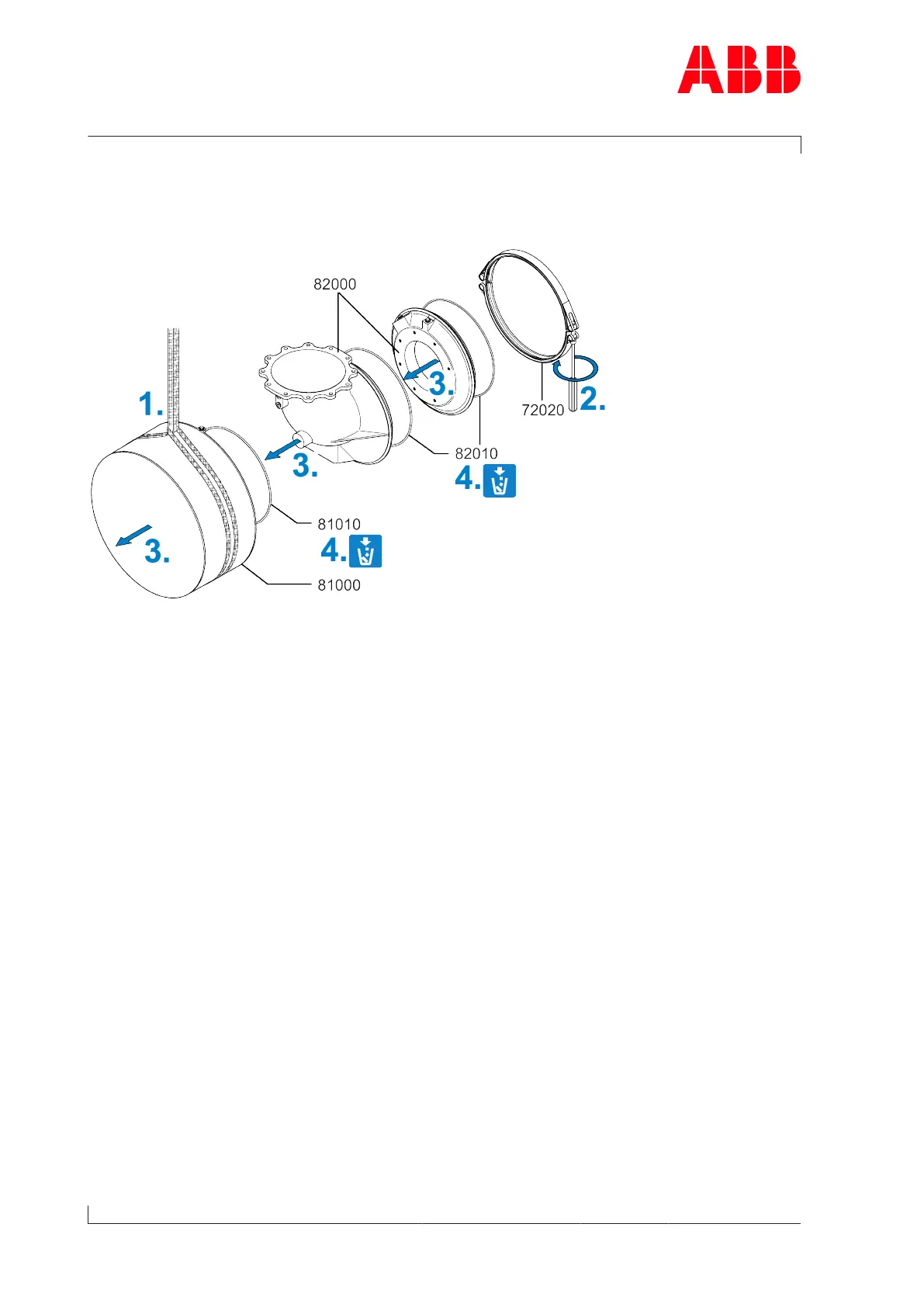

Fig.35: Removing the air inlets
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Loosen and remove V-clamp(72020).
3. Remove filter silencer(81000) or air suction branch(82000), set it down properly in an
appropriate place and secure it.
4. Remove and dispose of the O-ring(81010 / 82010).
Page 82 / 122
